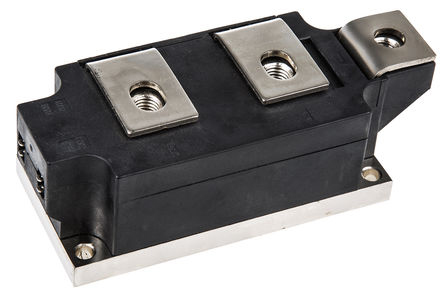

Vishay VS-VSKD600-20PbF Dual SMT High Voltage Diode, Series, 2000V 600A, 3-Pin SUPER MAGN-A-PAK

Enrgtech Part No: ET16724370
|
Manufacturer Part No:
VS-VSKD600-20PbF
|
Manufacturer: Vishay

VS-VSKD600-20PbF Vishay Dual SMT High Voltage Diode, Series, 2000V 600A, 3-Pin SUPER MAGN-A-PAK

Product Information

Mounting Type:

Surface Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

20.1kA

Maximum Forward Voltage Drop:

1.45V

Maximum Continuous Forward Current:

600A

Rectifier Type:

Recovery Rectifier

Package Type:

SUPER MAGN-A-PAK

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Series

Pin Count:

Peak Reverse Repetitive Voltage:

2000V

Checking for live stock

This is Dual SMT High Voltage Diode Series 2000V 600A 3-Pin SUPER MAGN-A-PAK manufactured by Vishay. The manufacturer part number is VS-VSKD600-20PbF. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 20.1ka peak non-repetitive forward surge current. It features 1.45v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 600a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of super magn-a-pak. It consists of 2 elements per chip. It is designed with a rectifier diode. The diode features a series configuration. It contains 3 pins. While having the peak reverse repetitive 2000v.
