Name: 1N5401-E3/54, Vishay
Brand: Vishay
SKU: ET16721575
Price: 0.12 GBP
Availability: PreOrder

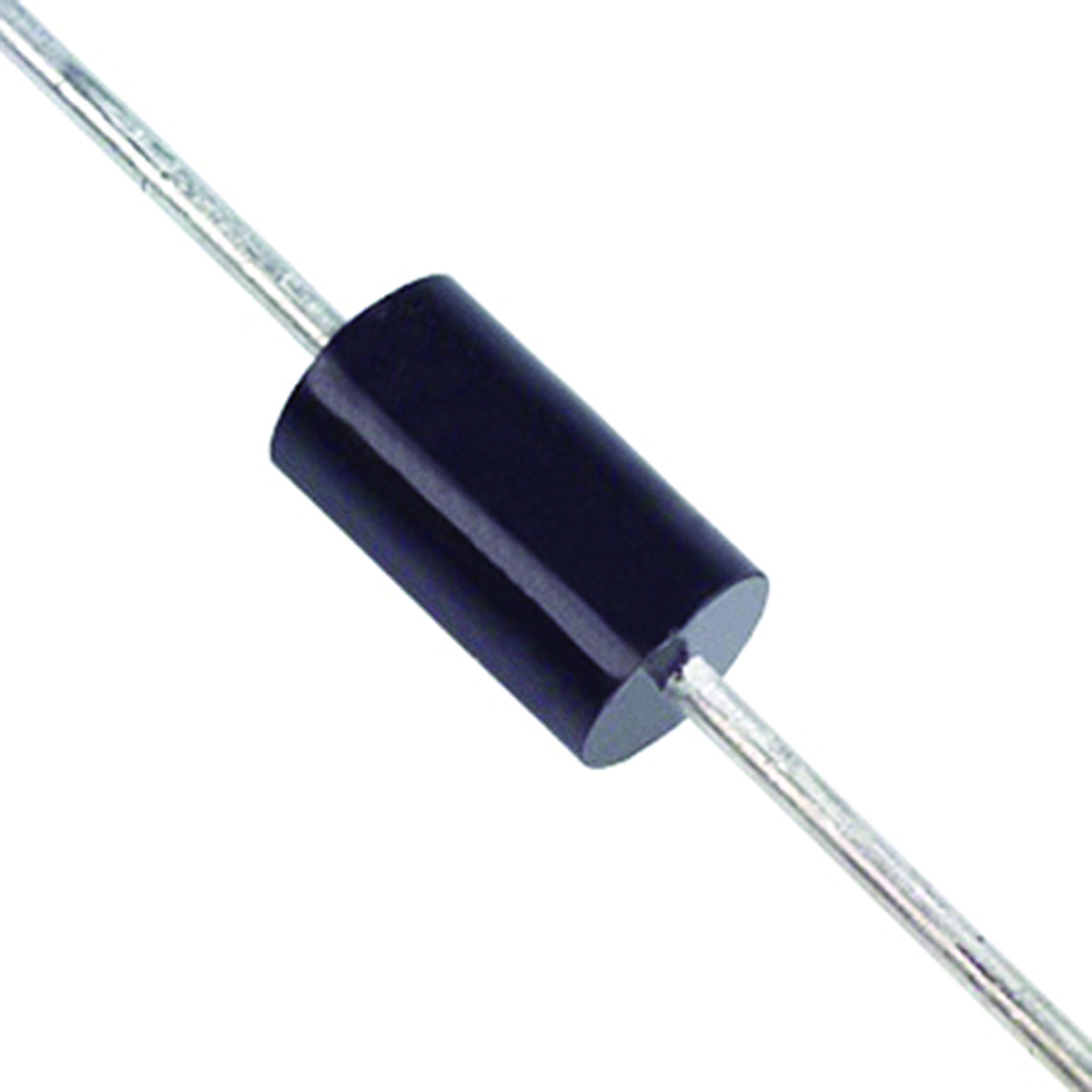

1N5401-E3-54 Vishay 1N5401-E3/54 Diode, 100V 3A, 2-Pin DO-201AD

(0)

Product Information

Diameter:

5.3mm

Mounting Type:

Through Hole

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

200A

Maximum Forward Voltage Drop:

1.2V

Maximum Continuous Forward Current:

Rectifier Type:

General Purpose

Package Type:

DO-201AD

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Single

Pin Count:

Checking for live stock

This is Diode 100V 3A 2-Pin DO-201AD manufactured by Vishay. The manufacturer part number is 1N5401-E3/54. Its diameter is 5.3mm. The product is available in through hole configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 200a peak non-repetitive forward surge current. It features 1.2v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 3a. This general purpose product is highly suited for various professionals in various settings. The package is a sort of do-201ad. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 100v.

Application Note- Trim and Form Process Reccomendation(Technical Reference)

Pad Layouts Soldering Process(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)

Datasheet(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)
