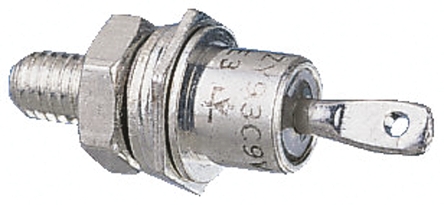

Vishay VS-85HF20 Thread Mount Fast Recovery Diode, Stud Cathode, 200V 85A, 2-Pin DO-203AB

Enrgtech Part No: ET14080831
|
Manufacturer Part No:
VS-85HF20
|
Manufacturer: Vishay

VS-85HF20 Vishay Thread Mount Fast Recovery Diode, Stud Cathode, 200V 85A, 2-Pin DO-203AB

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Reverse Recovery Time:

200 ns, 500 ns

Peak Non-Repetitive Forward Surge Current:

1.4kA

Maximum Forward Voltage Drop:

1.75V

Maximum Continuous Forward Current:

85A

Rectifier Type:

Recovery Rectifier

Package Type:

DO-203AB

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Cathode

Pin Count:

Checking for live stock

This is Thread Mount Fast Recovery Diode Stud Cathode 200V 85A 2-Pin DO-203AB manufactured by Vishay. The manufacturer part number is VS-85HF20. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, it has a peak reverse recovery time about 200 ns, 500 ns . Moreover, a bespoke product has 1.4ka peak non-repetitive forward surge current. It features 1.75v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 85a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-203ab. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 200v.
