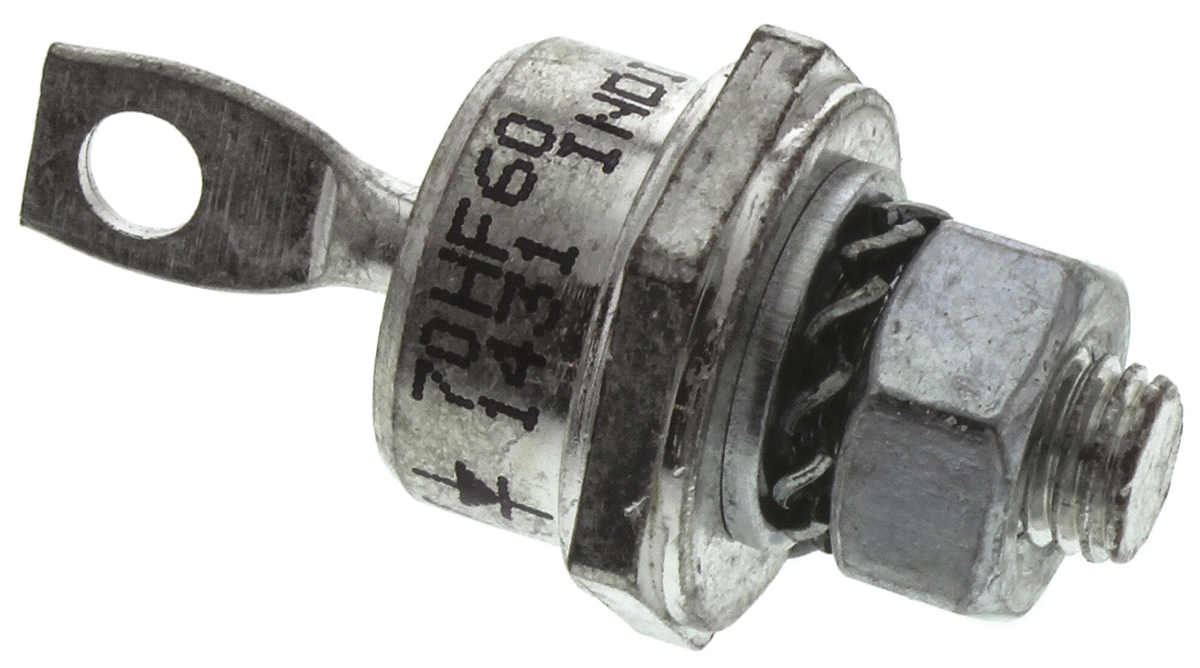

Vishay VS-70HF60 Thread Mount Switching Diode, Stud Cathode, 600V 70A, 2-Pin DO-5

VS-70HF60 Vishay Thread Mount Switching Diode, Stud Cathode, 600V 70A, 2-Pin DO-5
VS-70HF60
Vishay

Product Information

Mounting Type:
Thread Mount
Diode Technology:
Silicon Junction
Peak Non-Repetitive Forward Surge Current:
1.3kA
Maximum Forward Voltage Drop:
1.35V
Maximum Continuous Forward Current:
70A
Rectifier Type:
Recovery Rectifier
Package Type:
DO-5
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Stud Cathode
Pin Count:
2
Peak Reverse Repetitive Voltage:
600V
RoHs Compliant
Checking for live stock

This is Thread Mount Switching Diode Stud Cathode 600V 70A 2-Pin DO-5 manufactured by Vishay. The manufacturer part number is VS-70HF60. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 1.3ka peak non-repetitive forward surge current. It features 1.35v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 70a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-5. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 600v.

pdf icon
Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components(Technical Reference)
pdf icon
Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)
pdf icon
Application Note- Physical Explanation(Technical Reference)
pdf icon
Application Note- Rectifiers for Power Factor Correction(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Application Note- Fundamentals of Rectifiers(Technical Reference)
pdf icon
Application Note- High Speed Data Line Protection(Technical Reference)
pdf icon
Packaging Information(Technical Reference)
pdf icon
Diodes Group Body Marking(Technical Reference)
pdf icon
Pad Layouts/Soldering Process(Technical Reference)
pdf icon
Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
