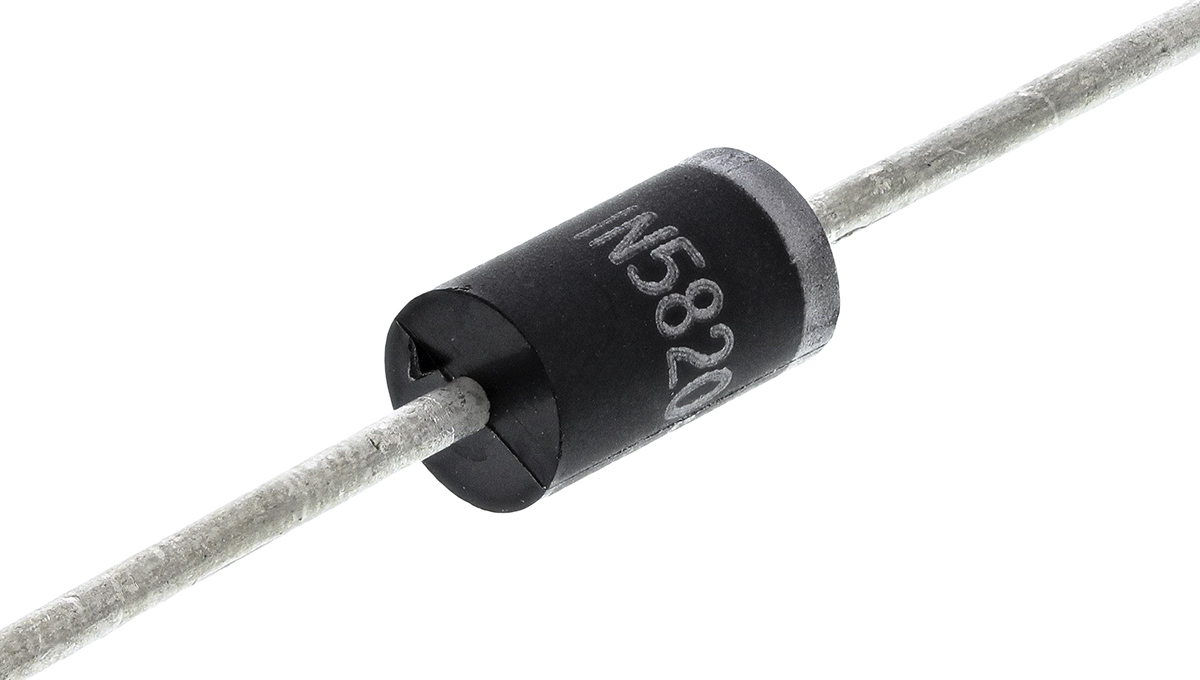

Vishay 1N5820-E3/54 Schottky Diode, 20V 3A, 2-Pin DO-201AD

1N5820-E3-54 Vishay 1N5820-E3/54 Schottky Diode, 20V 3A, 2-Pin DO-201AD
Vishay

Product Information

Diameter:
5.3mm
Mounting Type:
Through Hole
Diode Technology:
Schottky Barrier
Peak Non-Repetitive Forward Surge Current:
80A
Maximum Forward Voltage Drop:
475mV
Maximum Continuous Forward Current:
3A
Rectifier Type:
Schottky Rectifier
Package Type:
DO-201AD
Number of Elements per Chip:
1
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
20V
RoHs Compliant
Checking for live stock

This is Schottky Diode 20V 3A 2-Pin DO-201AD manufactured by Vishay. The manufacturer part number is 1N5820-E3/54. Its diameter is 5.3mm. The product is available in through hole configuration. The product utilizes schottky barrier diode technology. Moreover, a bespoke product has 80a peak non-repetitive forward surge current. It features 475mv of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 3a. This schottky rectifier product is highly suited for various professionals in various settings. The package is a sort of do-201ad. It consists of 1 elements per chip. It is designed with a schottky diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 20v.

pdf icon
1N5820 thru 1N5822 Schottky Barrier Rectifier(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
