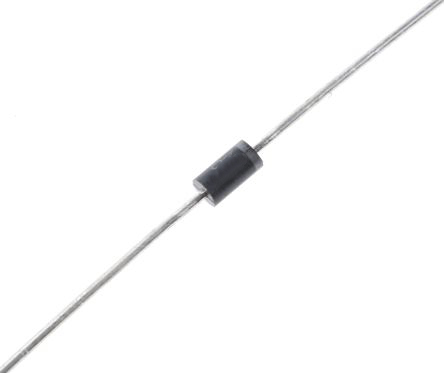

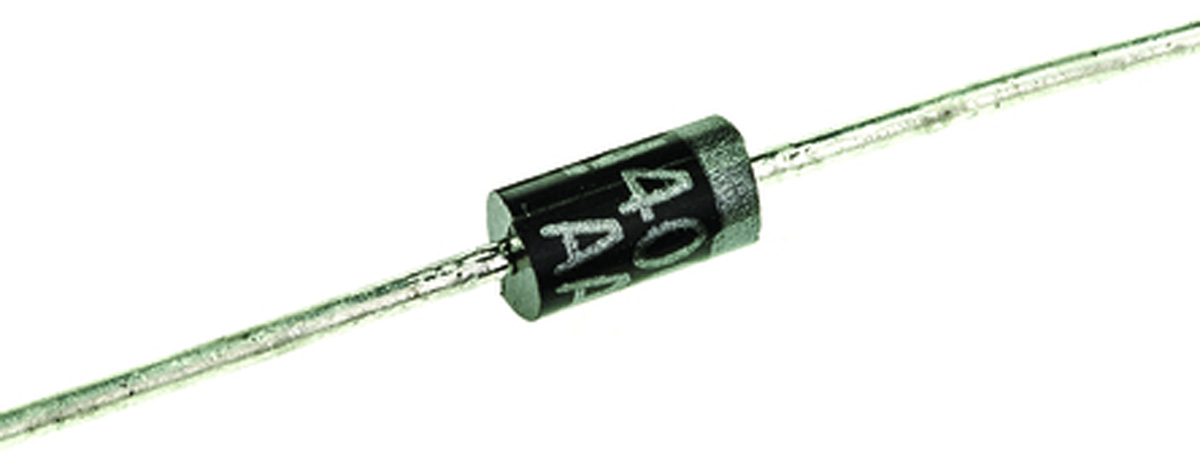

Vishay 1N4004-E3/54 Diode, 400V 1A, 2-Pin DO-204AL

Enrgtech Part No: ET14029685
|
Manufacturer Part No:
1N4004-E3/54
|
Manufacturer: Vishay

1N4004-E3-54 Vishay 1N4004-E3/54 Diode, 400V 1A, 2-Pin DO-204AL

Product Information

Diameter:

2.7mm

Mounting Type:

Through Hole

Diode Technology:

Silicon Junction

Series:

1N4004

Peak Non-Repetitive Forward Surge Current:

45A

Maximum Forward Voltage Drop:

1.1V

Maximum Continuous Forward Current:

Rectifier Type:

General Purpose

Package Type:

DO-204AL

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Single

Checking for live stock

This is Diode 400V 1A 2-Pin DO-204AL manufactured by Vishay. The manufacturer part number is 1N4004-E3/54. Its diameter is 2.7mm. The product is available in through hole configuration. The product utilizes silicon junction diode technology. The product 1n4004, is a highly preferred choice for users. Moreover, a bespoke product has 45a peak non-repetitive forward surge current. It features 1.1v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 1a. This general purpose product is highly suited for various professionals in various settings. The package is a sort of do-204al. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 400v.
