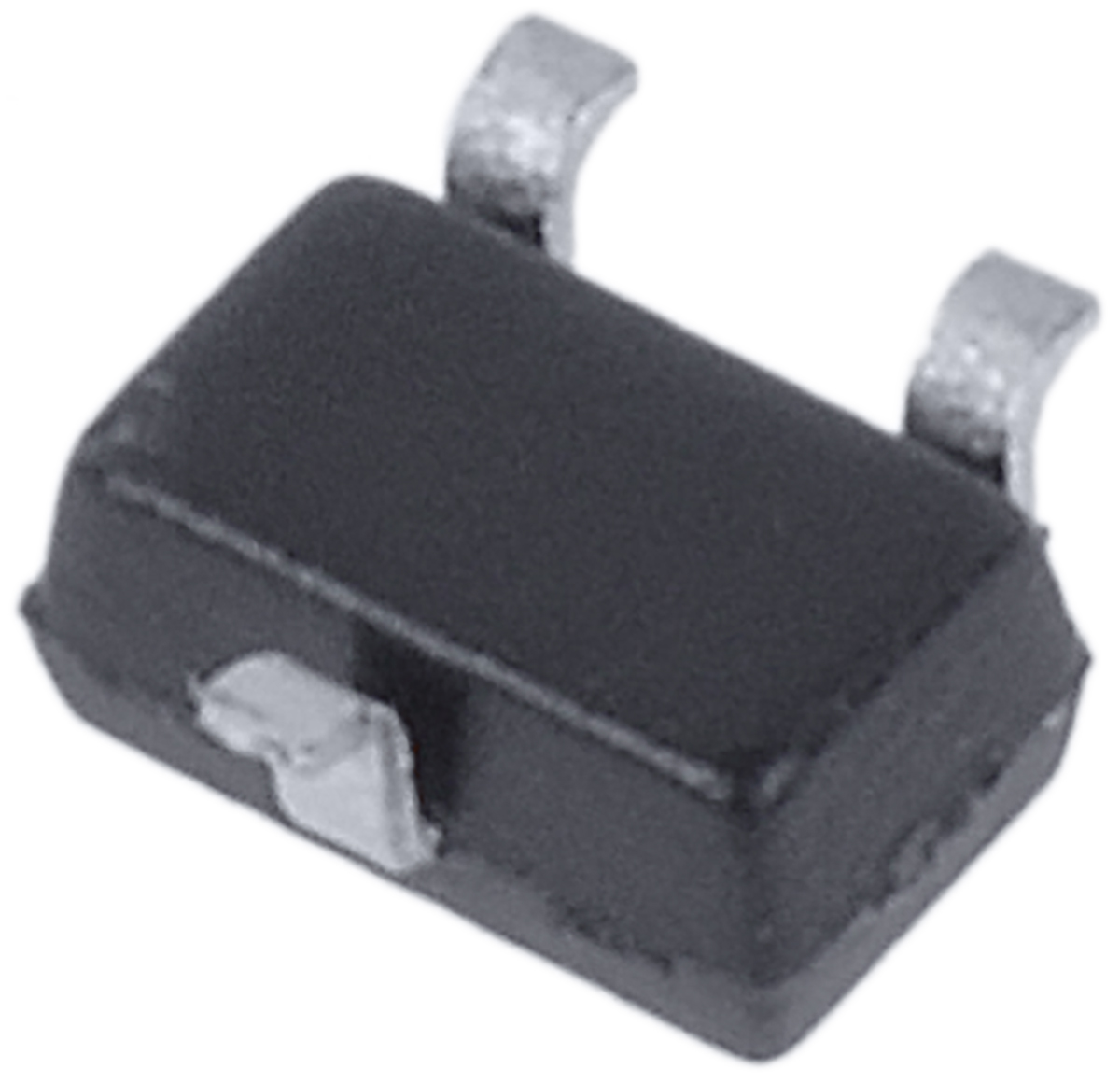

Diodes Inc BAT54W-7-F SMT Schottky Diode, 30V 200mA, 3-Pin SOT-323

BAT54W-7-F Diodes Inc SMT Schottky Diode, 30V 200mA, 3-Pin SOT-323
BAT54W-7-F
DiodesZetex

Product Information

Mounting Type:
Surface Mount
Diode Technology:
Schottky Barrier
Peak Reverse Recovery Time:
5ns
Peak Non-Repetitive Forward Surge Current:
600mA
Maximum Forward Voltage Drop:
1V
Maximum Continuous Forward Current:
200mA
Rectifier Type:
Schottky Diode
Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
1
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
3
Peak Reverse Repetitive Voltage:
30V
RoHs Compliant
Checking for live stock

This is Diodes Inc SMT Schottky Diode 30V 200mA 3-Pin SOT-323 manufactured by DiodesZetex. The manufacturer part number is BAT54W-7-F. The product is available in surface mount configuration. The product utilizes schottky barrier diode technology. Moreover, it has a peak reverse recovery time about 5ns . Moreover, a bespoke product has 600ma peak non-repetitive forward surge current. It features 1v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 200ma. This schottky diode product is highly suited for various professionals in various settings. The package is a sort of sot-323 (sc-70). It consists of 1 elements per chip. It is designed with a schottky diode. The diode features a single configuration. It contains 3 pins. While having the peak reverse repetitive 30v.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Datasheet - BAT54W-7-F(Technical Reference)
