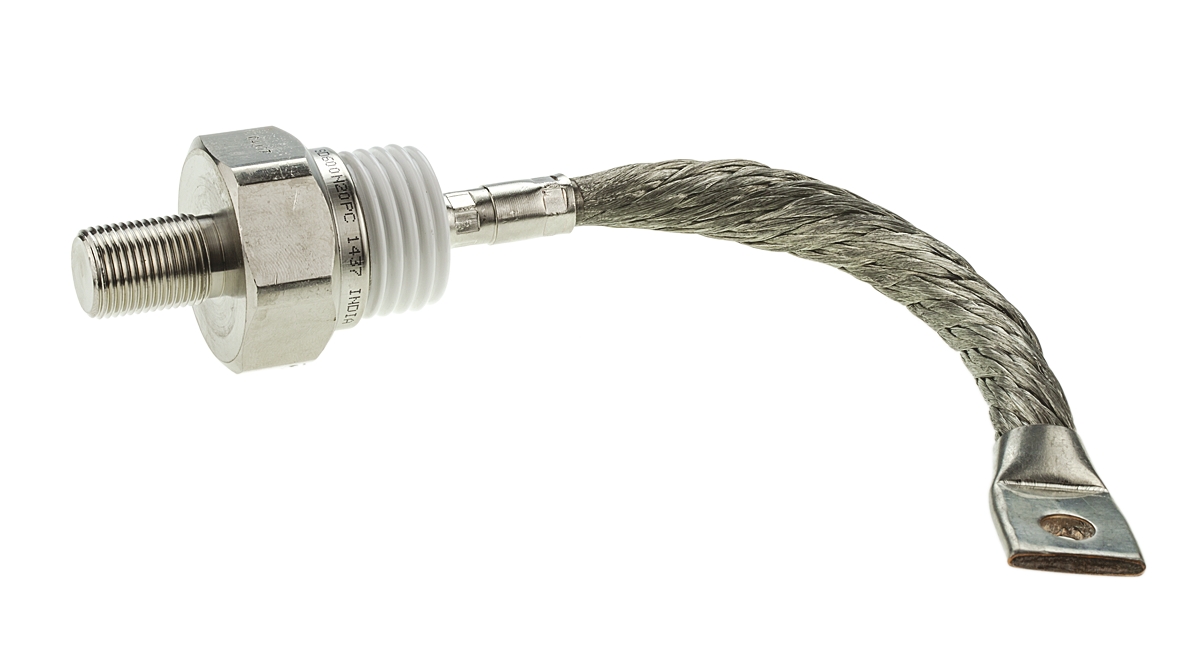

Vishay VS-SD600N20PC Thread Mount High Voltage Diode, Stud Cathode, 2000V 600A, 2-Pin B 8

Enrgtech Part No: ET13977814
|
Manufacturer Part No:
VS-SD600N20PC
|
Manufacturer: Vishay

VS-SD600N20PC Vishay Thread Mount High Voltage Diode, Stud Cathode, 2000V 600A, 2-Pin B 8

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

13.6kA

Maximum Forward Voltage Drop:

1.13V

Maximum Continuous Forward Current:

600A

Rectifier Type:

Recovery Rectifier

Package Type:

B 8

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

2000V

Checking for live stock

This is Thread Mount High Voltage Diode Stud Cathode 2000V 600A 2-Pin B 8 manufactured by Vishay. The manufacturer part number is VS-SD600N20PC. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 13.6ka peak non-repetitive forward surge current. It features 1.13v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 600a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of b 8. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 2000v.
