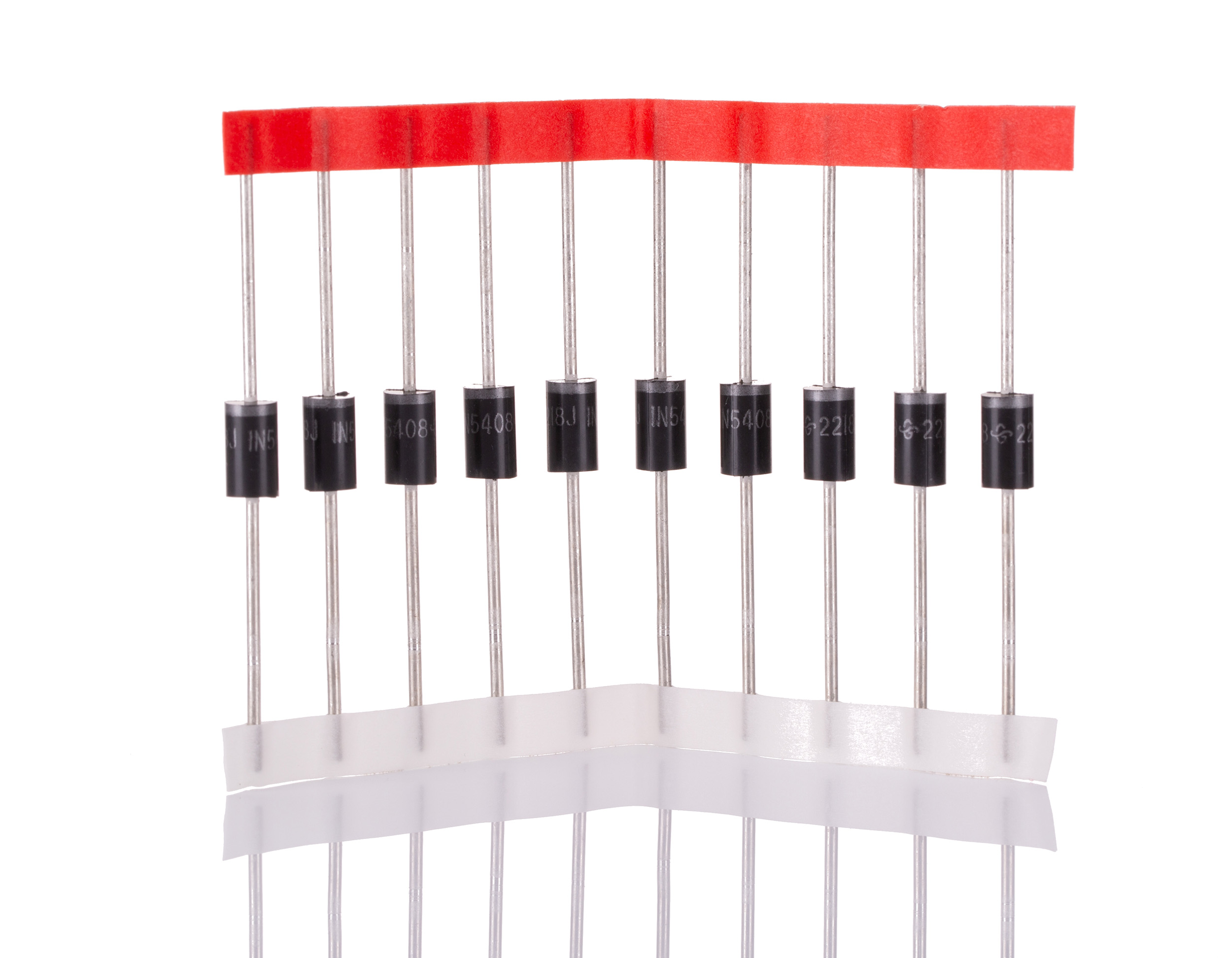

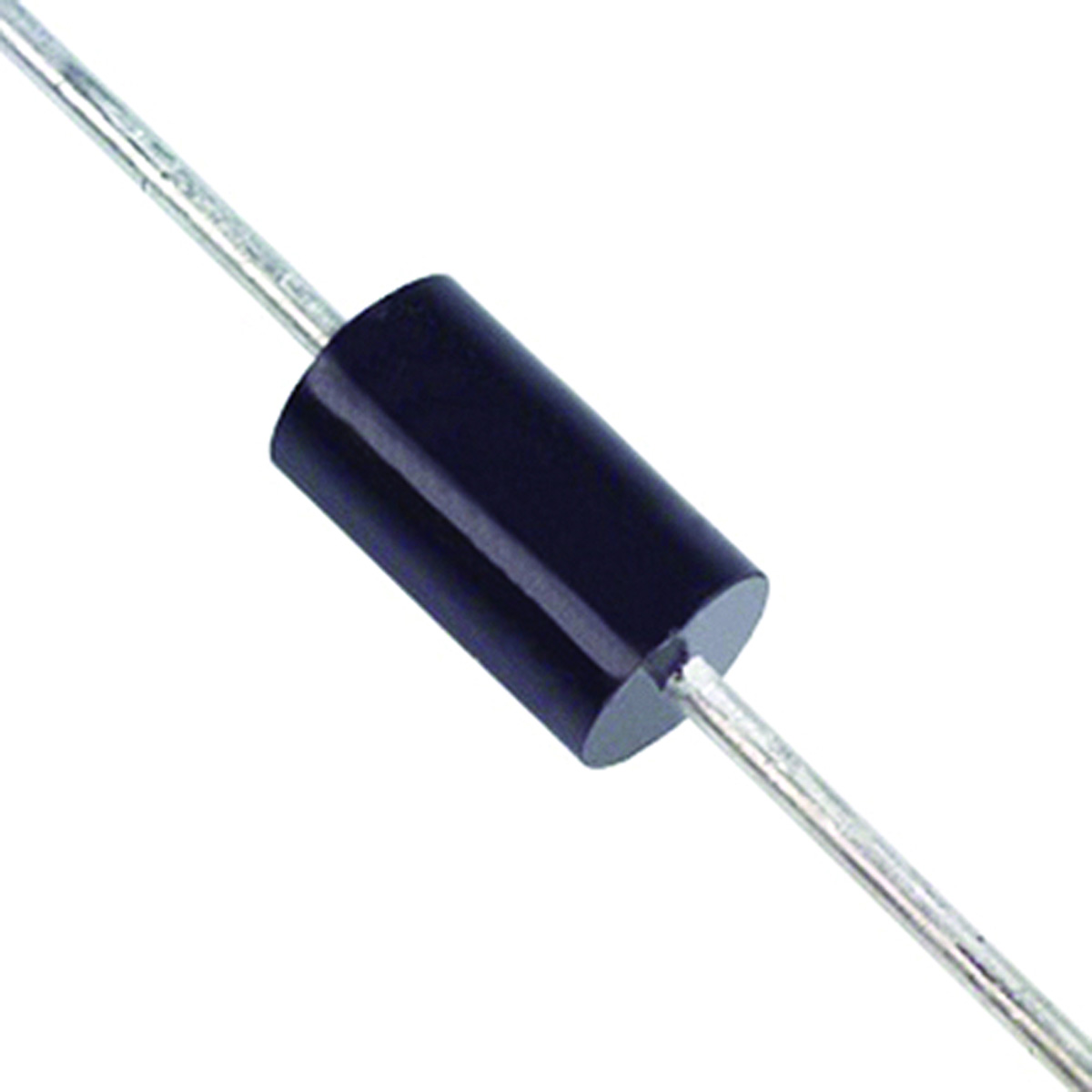

Vishay 1N5408-E3/54 Diode, 1000V 3A, 2-Pin DO-201AD

Enrgtech Part No: ET13975384
|
Manufacturer Part No:
1N5408-E3/54
|
Manufacturer: Vishay

1N5408-E3-54 Vishay 1N5408-E3/54 Diode, 1000V 3A, 2-Pin DO-201AD

Product Information

Diameter:

5.3mm

Mounting Type:

Through Hole

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

200A

Maximum Forward Voltage Drop:

1.2V

Maximum Continuous Forward Current:

Rectifier Type:

General Purpose

Package Type:

DO-201AD

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Single

Pin Count:

Checking for live stock

This is Diode 1000V 3A 2-Pin DO-201AD manufactured by Vishay. The manufacturer part number is 1N5408-E3/54. Its diameter is 5.3mm. The product is available in through hole configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 200a peak non-repetitive forward surge current. It features 1.2v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 3a. This general purpose product is highly suited for various professionals in various settings. The package is a sort of do-201ad. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 1000v.
