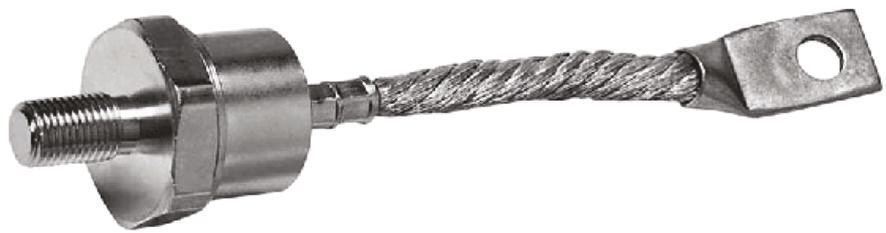

Vishay VS-150U60D Thread Mount Diode, Stud Cathode, 100V 150A, 2-Pin DO-8

Enrgtech Part No: ET13883913
|
Manufacturer Part No:
VS-150U60D
|
Manufacturer: Vishay

VS-150U60D Vishay Thread Mount Diode, Stud Cathode, 100V 150A, 2-Pin DO-8

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

3.7kA

Maximum Forward Voltage Drop:

1.33V

Maximum Continuous Forward Current:

150A

Rectifier Type:

Recovery Rectifier

Package Type:

DO-8

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

100V

Checking for live stock

This is Thread Mount Diode Stud Cathode 100V 150A 2-Pin DO-8 manufactured by Vishay. The manufacturer part number is VS-150U60D. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 3.7ka peak non-repetitive forward surge current. It features 1.33v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 150a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-8. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 100v.

VS-150U(R).. Series Standard Recovery Diodes (Stud Version), 150 A data sheet(Technical Reference)

Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components(Technical Reference)

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Rectifiers for Power Factor Correction(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)

Packaging Information(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Pad Layouts/Soldering Process(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
