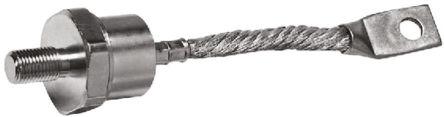

Vishay VS-150UR60D Thread Mount Diode, Stud Anode, 600V 150A, 2-Pin DO-8

Enrgtech Part No: ET13883911
|
Manufacturer Part No:
VS-150UR60D
|
Manufacturer: Vishay

VS-150UR60D Vishay Thread Mount Diode, Stud Anode, 600V 150A, 2-Pin DO-8

Product Information

Mounting Type:

Thread Mount

Maximum Continuous Forward Current:

150A

Peak Non-Repetitive Forward Surge Current:

3.1kA

Maximum Forward Voltage Drop:

1.47V

Diode Technology:

Silicon Junction

Package Type:

DO-8

Number of Elements per Chip:

Diode Type:

Silicon Junction

Diode Configuration:

Stud Anode

Pin Count:

Peak Reverse Repetitive Voltage:

600V

Checking for live stock

This is Thread Mount Diode Stud Anode 600V 150A 2-Pin DO-8 manufactured by Vishay. The manufacturer part number is VS-150UR60D. The product is available in thread mount configuration. Furthermore, its maximum continuous forward current constitutes 150a. Moreover, a bespoke product has 3.1ka peak non-repetitive forward surge current. It features 1.47v of maximum forward voltage drop. The product utilizes silicon junction diode technology. The package is a sort of do-8. It consists of 1 elements per chip. It is designed with a silicon junction diode. The diode features a stud anode configuration. It contains 2 pins. While having the peak reverse repetitive 600v.

VS-150U(R).. Series Standard Recovery Diodes (Stud Version), 150 A data sheet(Technical Reference)

Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components(Technical Reference)

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Rectifiers for Power Factor Correction(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)

Packaging Information(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Pad Layouts/Soldering Process(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
