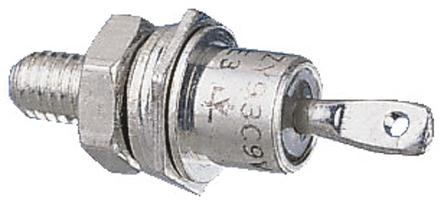

Vishay VS-72HFR120 Thread Mount Diode, Stud Anode, 1200V 70A, 2-Pin DO-203AB

VS-72HFR120 Vishay Thread Mount Diode, Stud Anode, 1200V 70A, 2-Pin DO-203AB
Vishay

Product Information

Mounting Type:
Thread Mount
Diode Technology:
Silicon Junction
Peak Non-Repetitive Forward Surge Current:
1.1kA
Maximum Forward Voltage Drop:
1.35V
Maximum Continuous Forward Current:
70A
Rectifier Type:
Recovery Rectifier
Package Type:
DO-203AB
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Stud Anode
Pin Count:
2
Peak Reverse Repetitive Voltage:
1200V
RoHs Compliant
Checking for live stock

This is Thread Mount Diode Stud Anode 1200V 70A 2-Pin DO-203AB manufactured by Vishay. The manufacturer part number is VS-72HFR120. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 1.1ka peak non-repetitive forward surge current. It features 1.35v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 70a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-203ab. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud anode configuration. It contains 2 pins. While having the peak reverse repetitive 1200v.
