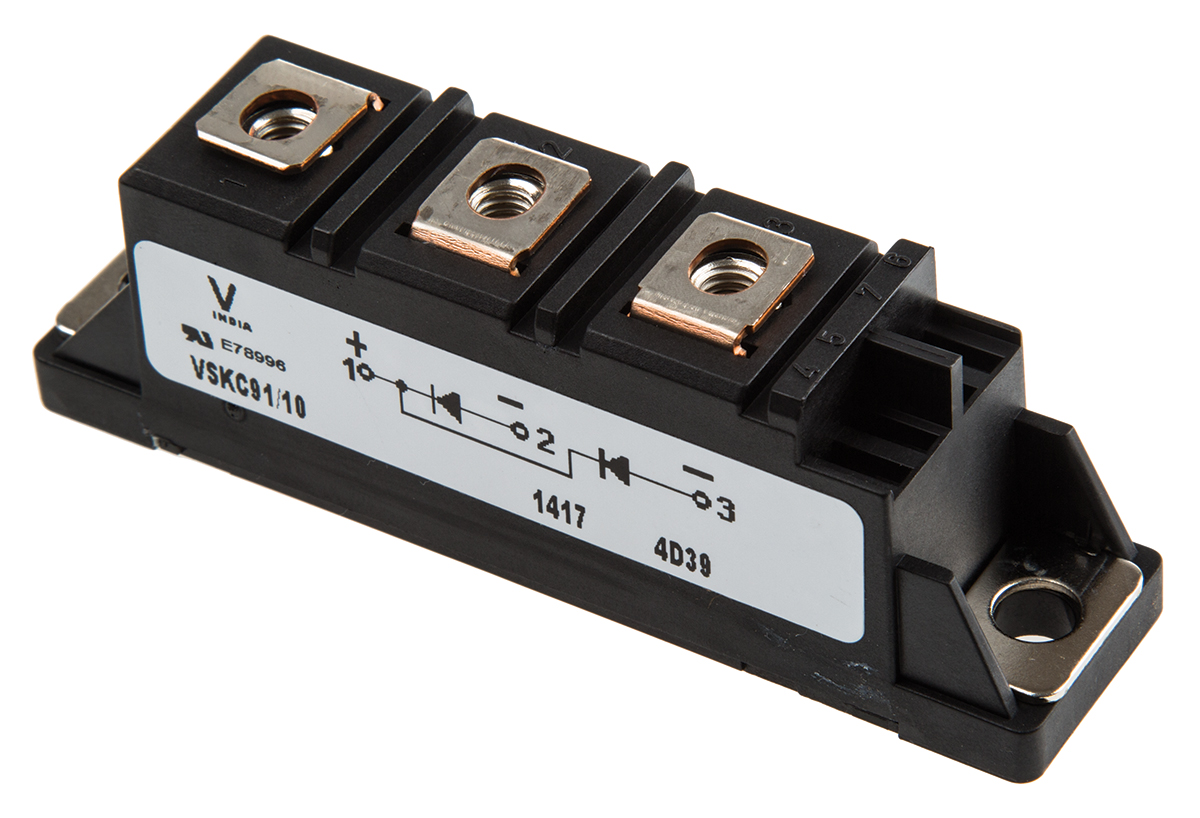

Vishay VS-VSKC91/10 Dual Diode Module, Common Cathode, 1000V 100A, 3-Pin TO-240AA

Enrgtech Part No: ET13804092
|
Manufacturer Part No:
VS-VSKC91/10
|
Manufacturer: Vishay

VS-VSKC91-10 Vishay VS-VSKC91/10 Dual Diode Module, Common Cathode, 1000V 100A, 3-Pin TO-240AA

Product Information

Mounting Type:

Panel Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

2.1kA

Maximum Forward Voltage Drop:

1.55V

Maximum Continuous Forward Current:

100A

Rectifier Type:

Recovery Rectifier

Package Type:

TO-240AA

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Common Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

1000V

Checking for live stock

This is Dual Diode Module Common Cathode 1000V 100A 3-Pin TO-240AA manufactured by Vishay. The manufacturer part number is VS-VSKC91/10. The product is available in panel mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 2.1ka peak non-repetitive forward surge current. It features 1.55v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 100a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of to-240aa. It consists of 2 elements per chip. It is designed with a rectifier diode. The diode features a common cathode configuration. It contains 3 pins. While having the peak reverse repetitive 1000v.
