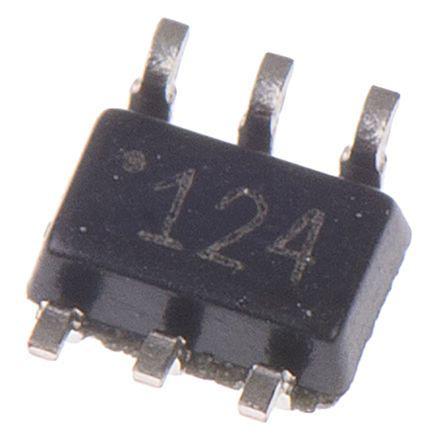

This is Dual Schmitt Trigger Inverter 6-Pin SC-70 manufactured by ON Semiconductor. The manufacturer part number is NC7WZ14P6. The given dimensions of the product include 2 x 1.25 x 1.1mm. The logic family is wz. Furthermore, the product is 1.25mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 6ns maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. The package is a sort of sc-70. It consists of 2 elements per chip. It has a maximum operating temperature of +85 °c. Its accurate length is 2mm. It contains 6 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes inverter. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
