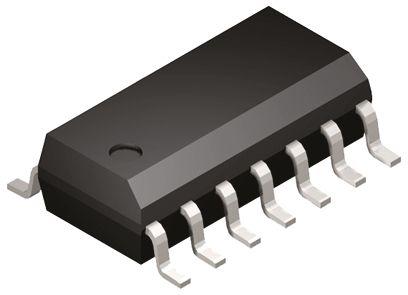

This is Quad Schmitt Trigger Schmitt Trigger Inverter 4.5 → 5.5 V 14-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC74ACT132DG. The given dimensions of the product include 8.75 x 4 x 1.5mm. The logic family is act. Furthermore, the product is 4mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 13 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. Furthermore, it has asingle ended output. The package is a sort of soic. It consists of 4 elements per chip. It has a maximum operating temperature of +85 °c. Its accurate length is 8.75mm. It contains 14 pins. The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. The primary function of logic includes nand. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
