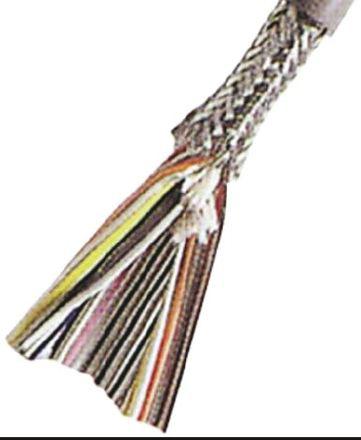

3M 50 Way Screened Round Ribbon Cable, 63.5 mm Width

3784-25P-540A 3M 50 Way Screened Round Ribbon Cable, 63.5 mm Width
3784-25P-540A
3M

Product Information

American Wire Gauge:
28 AWG
Capacitance:
45.6 pF/m
Cable Shape:
Ribbon
Maximum Operating Temperature:
+80°C
Size of Strands:
36
Voltage Rating:
300 V
Number of Strands:
7
Core Strands:
7/36
Sheath Colour:
Grey
Width:
63.5 mm
Screened/Unscreened:
Screened
Minimum Operating Temperature:
-20°C
Pitch:
1.27mm
Number of Ways:
50
Conductor Strand Type:
Stranded
Characteristic Impedance:
123 Ω
Outer Diameter:
13mm
RoHs Compliant
Checking for live stock

This is 50 Way Screened Round Ribbon Cable 63.5 mm Width manufactured by 3M. The manufacturer part number is 3784-25P-540A. Features 28 awg - American Wire Gauge. It provides a 45.6 pf/m of capacitance value. Moreover, this cable has a ribbon shape. It has a maximum operating temperature of +80°c. The strand size includes 36. Moreover, the product has a nominal 300 v voltage rating. Additionally, it contains 7 strands. The core strands are 7/36. The sheath has an adorable grey colour. Furthermore, the product is 63.5 mm wide. Screen Options - screened. Whereas, the minimum operating temperature of the product is -20°c. Moreover, the product is 1.27mm. It comprises 50 ways. It has a stranded type conductor strand . The typical characteristic impedance includes 123 ω. Its outer diameter is 13mm.

pdf icon
Cables Selection Guide(Technical Reference)
pdf icon
Round Shielded Twisted Pair Cable 3784 Series Data Sheet(Technical Reference)
