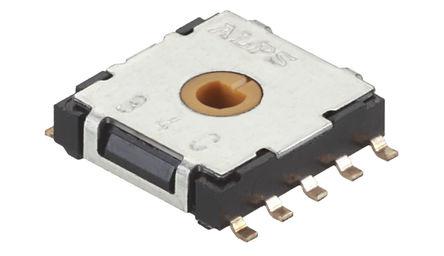

Alps Electric, 9 Position SP9T Rotary Switch, 100 mA, PC Pin

SRBQ290301 Alps Electric, 9 Position SP9T Rotary Switch, 100 mA, PC Pin
Alps Alpine

Product Information

Contact Configuration:
SP9T
Number of Switch Positions:
9
Actuator Colour:
Grey
Dimensions:
9.8 x 11.4 x 11.4mm
Mounting Type:
PCB
Width:
9.8mm
Contact Current Rating:
100 mA
Angle of Throw:
40°
Voltage Rating:
16V dc
Mounting Hole Size:
0.9mm
Height:
11.4mm
Application:
Home Appliances
Depth:
11.4mm
Minimum Operating Temperature:
-10°C
Contact Type:
Non-Shorting
Mechanical Life:
10000Cycles
Number of Contacts:
1
Maximum Operating Temperature:
+60°C
Terminal Type:
PC Pin
RoHs Compliant
Checking for live stock

This is Alps Electric 9 Position SP9T Rotary Switch 100 mA PC Pin manufactured by Alps Alpine. The manufacturer part number is SRBQ290301. The contact is equipped with sp9t configuration. The product includes 9 switch positions . The actuator has an adorable grey colour. The given dimensions of the product include 9.8 x 11.4 x 11.4mm. The product is available in pcb configuration. Furthermore, the product is 9.8mm wide. The rated contact current is 100 ma. It has a throw angle 40°. Moreover, the product has a nominal 16v dc voltage rating. In addition, It features 0.9mm of mounting hole size. In addition, the height is 11.4mm. Applications Information involves home appliances. The product comes in 11.4mm depth. Whereas, the minimum operating temperature of the product is -10°c. It has typical contact type of non-shorting. The product also provide mechanical stability with 10000cycles. The product contains 1 contacts. It has a maximum operating temperature of +60°c. The terminal is a pc pin type.

pdf icon
Alps SRBQ Series Datasheet(Technical Reference)
pdf icon
Datasheet_EN(Technical Reference)
