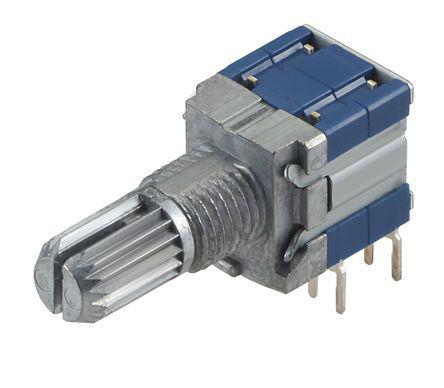

Alps Electric, 2 Position DPDT Rotary Switch, 100 mA, PC Pin

SRBM120700 Alps Electric, 2 Position DPDT Rotary Switch, 100 mA, PC Pin
Alps Alpine

Product Information

Contact Configuration:
DPDT
Number of Switch Positions:
2
Actuator Colour:
Grey
Dimensions:
27.5 x 10 x 11mm
Mounting Type:
PCB
Width:
27.5mm
Contact Current Rating:
100 mA
Angle of Throw:
30°
Voltage Rating:
16V dc
Mounting Hole Size:
0.9 mm
Height:
10mm
Application:
Car AV Equipment
Depth:
11mm
Minimum Operating Temperature:
-30°C
Contact Type:
Non-Shorting
Mechanical Life:
10000Cycles
Number of Contacts:
2
Maximum Operating Temperature:
+85°C
Terminal Type:
PC Pin
RoHs Compliant
Checking for live stock

This is Alps Electric 2 Position DPDT Rotary Switch 100 mA PC Pin manufactured by Alps Alpine. The manufacturer part number is SRBM120700. The contact is equipped with dpdt configuration. The product includes 2 switch positions . The actuator has an adorable grey colour. The given dimensions of the product include 27.5 x 10 x 11mm. The product is available in pcb configuration. Furthermore, the product is 27.5mm wide. The rated contact current is 100 ma. It has a throw angle 30°. Moreover, the product has a nominal 16v dc voltage rating. In addition, It features 0.9 mm of mounting hole size. In addition, the height is 10mm. Applications Information involves car av equipment. The product comes in 11mm depth. Whereas, the minimum operating temperature of the product is -30°c. It has typical contact type of non-shorting. The product also provide mechanical stability with 10000cycles. The product contains 2 contacts. It has a maximum operating temperature of +85°c. The terminal is a pc pin type.

pdf icon
Datasheet_EN(Technical Reference)
pdf icon
Alps SRBM Series Datasheet(Technical Reference)
