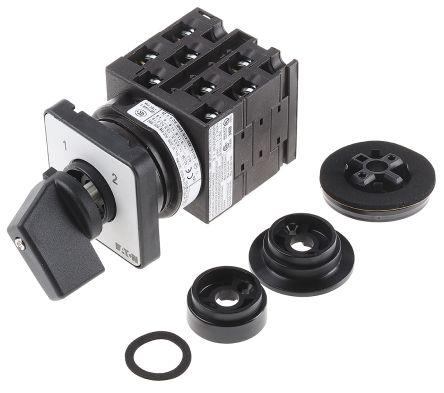

Eaton, 4P 2 Position 90° Rotary Switch, 690 V ac, 20 A, Toggle Actuator

78627324---T0-4-8223-E-EZ-P1-RS257-9558- Eaton, 4P 2 Position 90° Rotary Switch, 690 V ac, 20 A, Toggle Actuator
78627324 | T0-4-8223/E/EZ-P1(RS257-9558)
78627324 | T0-4-8223/E/EZ-P1(RS257-9558)
Eaton

Product Information

Dimensions:
48 x 48 x 100 mm
Maximum Current:
20 A
Maximum Voltage:
690 V ac
Angle of Throw:
90°
Length:
48mm
Number of Positions:
2
Width:
48mm
Depth:
100mm
Actuator Type:
Toggle
Normal State Configuration:
NO/NC
Pole and Throw Configuration:
4P
Terminal Type:
Screw
RoHs Compliant
Checking for live stock

This is 4P 2 Position 90° Rotary Switch 690 V ac 20 A Toggle Actuator manufactured by Eaton. The manufacturer part number is 78627324 | T0-4-8223/E/EZ-P1(RS257-9558). The given dimensions of the product include 48 x 48 x 100 mm. It also carries 20 a maximum current. It has a maximum 690 v ac voltage . It has a throw angle 90°. Its accurate length is 48mm. The product carries possible position value of 2. Furthermore, the product is 48mm wide. The product comes in 100mm depth. The product carries toggle actuator. The normal state configuration includes no/nc. It has 4p pole and throw configuration. The terminal is a screw type.

pdf icon
DS-050712-T0-4-8223_E-20140925(Technical Reference)
pdf icon
T0-4-8223-E-Datasheet(Technical Reference)
pdf icon
CSA APPROVAL LR 12528(Technical Reference)
