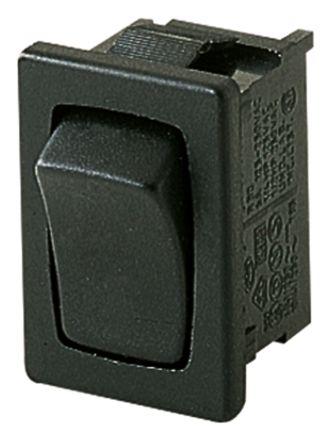

This is SPDT On-Off-On Rocker Switch Panel manufactured by Marquardt. The manufacturer part number is 01803.6102-00. It is designed with an adorable rectangular shape actuator . It features a <100mω contact resistance. Its panel cut out is 12.9mm in height . The actuator has an adorable black colour. Illumination Option no. The product is available in panel mount configuration. It is IP rated with ip40. The rated contact current is 10 a. Whereas, the minimum operating temperature of the product is -20 (actuating side) °c, -20 (terminal side) °c. The product has -20 → +100 (terminal side) °c, -20 → +55 (actuating side) °c of operating temperature range. The panel cut out size includes 18 x 18.6mm. The contact is equipped with single pole double throw (spdt) configuration. The casing is constructed from highly stable polyamide material. Its panel cut out is 19.2mm wide . In addition, its AC voltage rating is 250v . The product also provide mechanical stability with 100000operations. It provides on-off-on switch operation. It has a maximum operating temperature of +100 (terminal side) °c, +55 (actuating side) °c. The terminal is a solder type. The product is made from sturdy silver materials.
For more information please check the datasheets.
