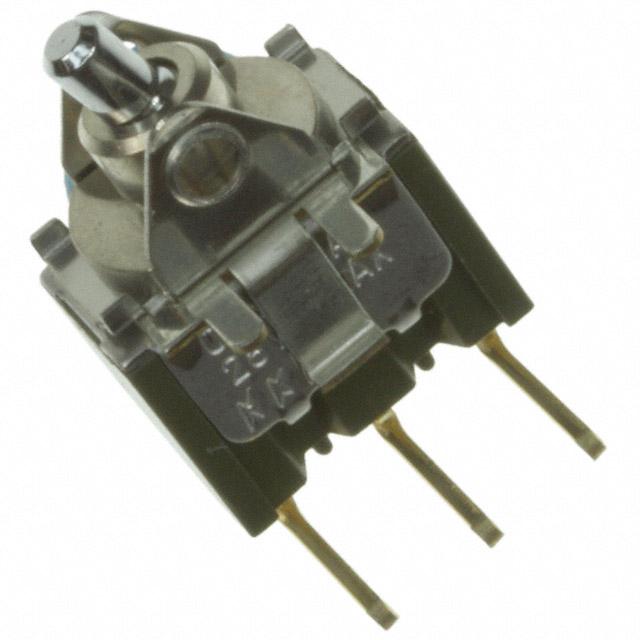

NKK Switches M2012TXG30

Enrgtech Part No: ET13464146
|
Manufacturer Part No:
M2012TXG30
|
Manufacturer: NKK Switches

Product Information

The M2012TXG30 by NKK Switches is a robust SPDT rocker switch known for its durable construction and reliable performance, offering smooth and precise control in a wide range of applications. It is a high-geared SPDT switch providing versatile functionality and dependable switching capabilities.

HTSUS:

8536.50.9065

RoHS Status:

ROHS3 Compliant

Electrical Life:

50,000 Cycles

Termination Style:

PC Pin

Voltage Rating - DC:

28 V

Operating Temperature:

-30°C ~ 85°C

Approval Agency:

CSA, UL

Panel Cutout Dimensions:

Mechanical Life:

50,000 Cycles

Color - Actuator/Cap:

Voltage Rating - AC:

28 V

REACH Status:

REACH Unaffected

Checking for live stock

The NKK Switches M2012TXG30 is a high-quality rocker switch for various electrical applications. Its SPDT (Single Pole, Double Throw) configuration provides versatility in circuit control. This switch can handle AC and DC power, making it suitable for numerous applications. Its through-hole mounting style and right-angle design make installing and operating in various applications easy.

The NKK Switches M2012TXG30: Key Attributes

SPDT Configuration: This rocker switch's single pole, double throw configuration allows it to control two separate circuits. It offers three positions: ON, OFF, and ON (momentary), providing versatile control options.
AC/DC Compatibility: The switch is designed to handle alternating current (AC) and direct current (DC) power, expanding its usability across various electrical systems.
Through-Hole Mounting: The through-hole mount design ensures a secure and reliable connection to the circuit board. It simplifies the installation process and enhances the switch's durability.
Right-Angle Design: The right-angle configuration of the switch makes it suitable for applications with space constraints. It allows for comfortable operation and easy access, even in tight spaces.

Application Versatility of NKK Switches M2012TXG30:

The NKK Switches M2012TXG30 is widely used in various industries and applications, including:

Consumer Electronics: It can be found in audio equipment, computer peripherals, and home appliances, providing convenient control for power and mode selection.
Industrial Equipment: This switch is commonly used in control panels, machinery, and industrial automation systems to control power, functions, and operational modes.
Automotive: The M2012TXG30 finds application in automotive dashboards, interior lighting, and auxiliary controls, ensuring reliable and user-friendly operation.
Medical Equipment: It is used in medical devices and equipment for controlling power, functions, and operational modes in hospitals and healthcare facilities.

Additional Specifications of the Product:

The M2012TXG30 rocker switch has a 0.4VA (volt-ampere) rating for both AC and DC power, making it suitable for low-power applications.
It can handle a maximum voltage of 28V, ensuring compatibility with most standard power systems.
The switch is built with a through-hole mount, which means it is designed to be soldered directly onto a printed circuit board.
Its right-angle configuration allows for easy access and operation in cramped spaces.

Obsolete 09/MAY/2023(PCN Obsolescence/ EOL)

M Series, Mini Rockers Bracket(Datasheets)

RoHS Cert - Switches & Pushbuttons(Environmental Information)

NKK Switches PFOS & PFOA Free Cert(Environmental Information)

NKK Switches ODC Cert(Environmental Information)

M Series Toggles, rockers, Pushbuttons CSA Mark Size 23/Jul/2015(PCN Design/Specification)
