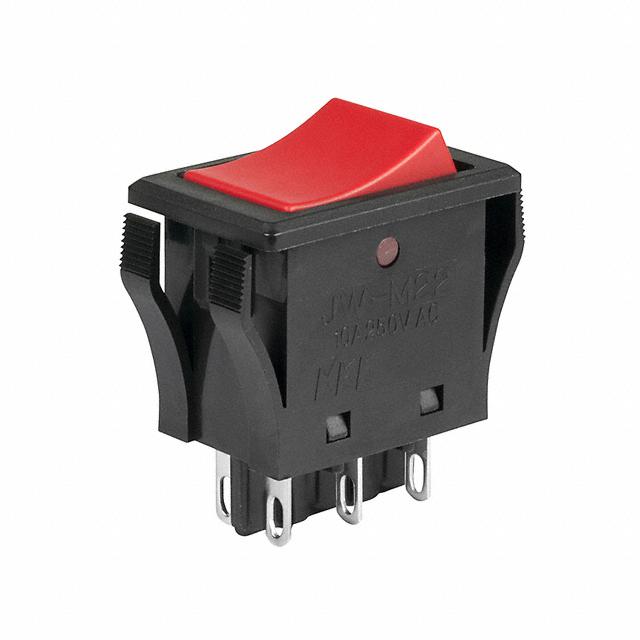

NKK Switches JWM22RCA/UCV

JWM22RCA-UCV NKK Switches JWM22RCA/UCV
NKK Switches

Product Information

HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder, Quick Connect - 0.110" (2.8mm)
Operating Temperature:
-25°C ~ 70°C
Approval Agency:
CSA, UL, VDE
Panel Cutout Dimensions:
Rectangular - 24.00mm x 15.40mm
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
JWM22RCA/UCV Models
edacadModelUrl:
/en/models/2104368
Illumination Type, Color:
-
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
10A (AC)
Ingress Protection:
Dust Proof
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount, Snap-In
Series:
JW
Packaging:
Bulk
Color - Actuator/Cap:
Red
Actuator Type:
Concave (Curved)
Illumination Voltage (Nominal):
-
Base Product Number:
JWM22R
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JWM22RCA/UCV. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. Moreover, it has solder, quick connect - 0.110" (2.8mm) terminal style. The product has -25°c ~ 70°c operating temperature range. It is approved by csa, ul, vde. It also has a rectangular - 24.00mm x 15.40mm dimensional features. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 10a (ac). It is IP rated with dust proof. The splendid features of the product include epoxy sealed terminals. The product is available in panel mount, snap-in configuration. The product jw, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It is made from red. The product carries concave (curved) actuator. Moreover, it corresponds to jwm22r, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
JWM/JWL/JWLW Rockers UL Factory Code 15/Aug/2014(PCN Design/Specification)
pdf icon
JWL/JWM Series DESIGN 29/Mar/2024(PCN Design/Specification)
pdf icon
JW Series Datasheet(Datasheets)
