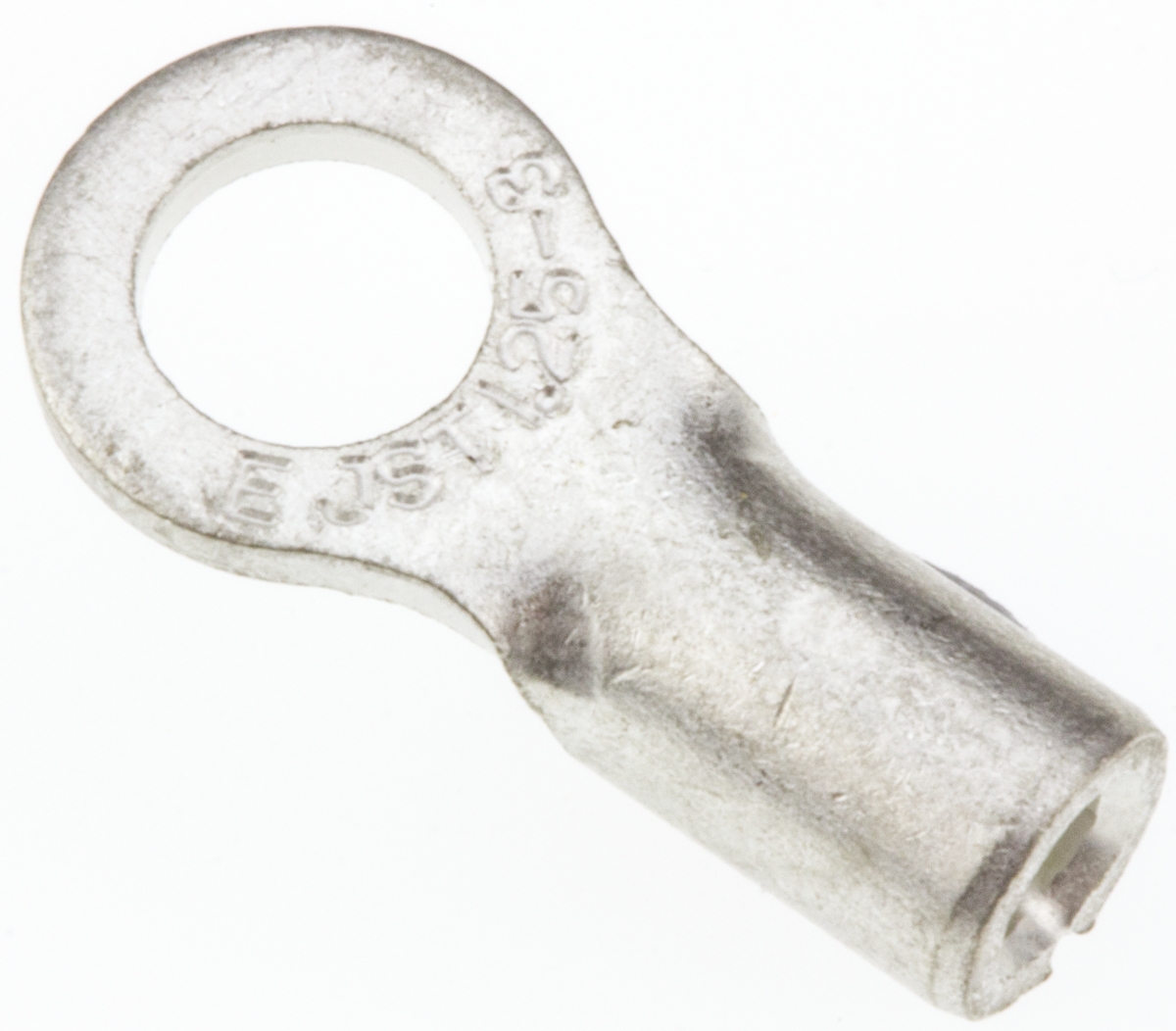

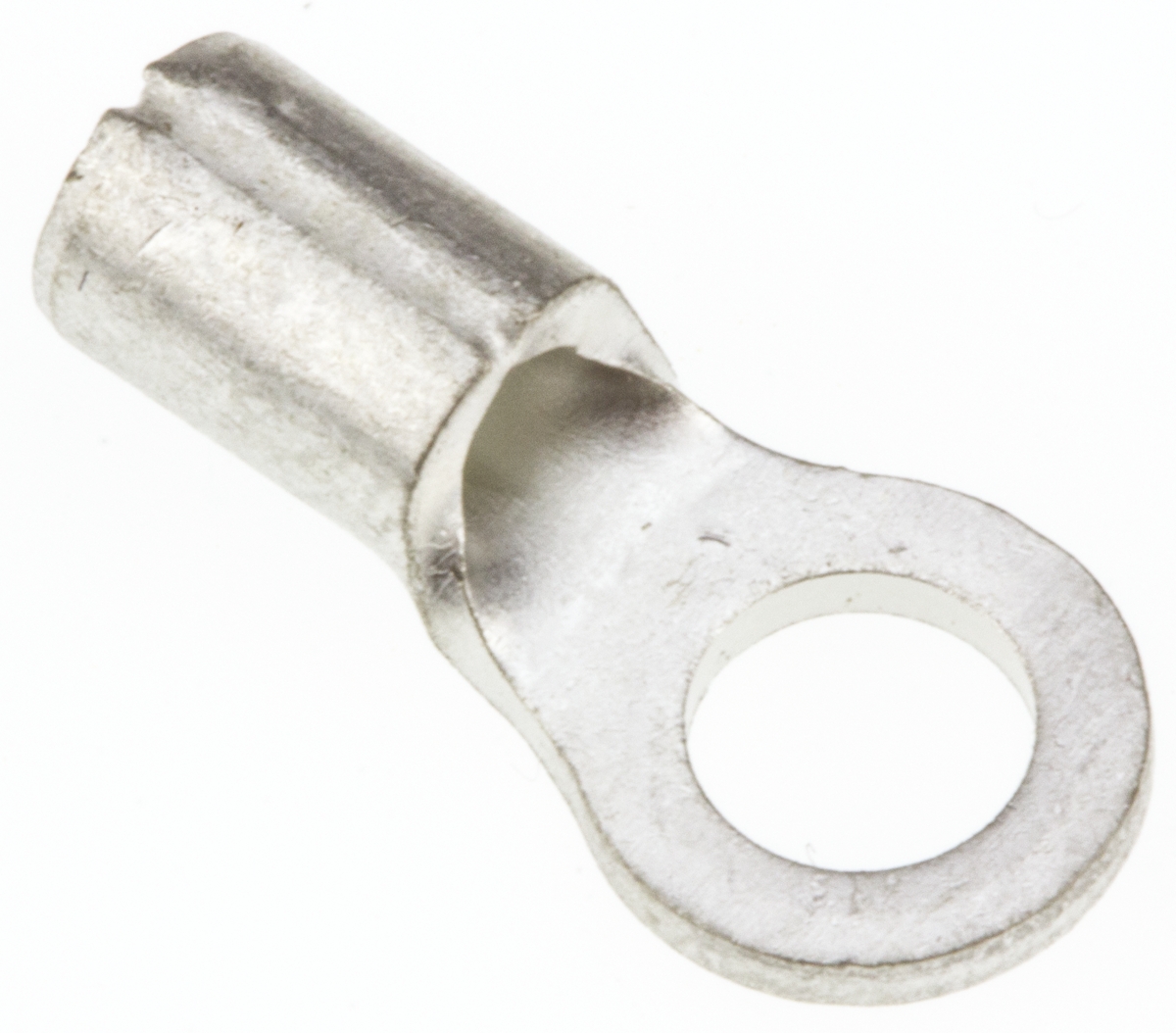

JST 1.25-3, R Series Uninsulated Crimp Ring Terminal, 3mm Stud Size, 0.25mm² to 1.65mm², 22AWG to 16AWG

Enrgtech Part No: ET14108193
|
Manufacturer Part No:
1.25-3
|
Manufacturer: JST

1-25-3 JST 1.25-3, R Series Uninsulated Crimp Ring Terminal, 3mm Stud Size, 0.25mm² to 1.65mm², 22AWG to 16AWG

Product Information

Maximum Wire Size mm²:

1.65mm²

Series:

Minimum Wire Size AWG:

22AWG

Thickness:

0.8mm

Stud Size:

3mm

Inner Ring Diameter:

3.2mm

Outer Ring Diameter:

5.5mm

Overall Length:

11.5mm

Insulation:

Uninsulated

Maximum Wire Size AWG:

16AWG

Minimum Wire Size mm²:

0.25mm²

Checking for live stock

The JST 1.25-3 is a highly versatile and reliable electrical connector designed for a wide range of applications. This terminal is precisely engineered to accommodate wire sizes ranging from 0.25mm² to 1.65mm², equivalent to 22AWG to 16AWG, making it suitable for various wiring needs. The 3mm stud size ensures a secure and stable connection, enhancing the integrity and performance of electrical systems. Crafted by JST, a reputable name in the industry, this crimp ring terminal is uninsulated, which allows for a more compact and flexible installation, particularly in confined spaces or where heat dissipation is crucial. The ease of crimping and the secure fit provided by the ring design minimise the risk of disconnection, thereby enhancing safety and operational efficiency.

Possible Advantages of Using the JST 1.25-3, R Series Uninsulated Crimp Ring Terminal, 3mm Stud Size, 0.25mm² to 1.65mm², 22AWG to 16AWG

The 3mm stud size provides a stable and secure fit.
Made from high-quality materials for long-lasting performance.
The uninsulated feature allows for use in tight spaces and better heat dissipation.
A simple crimping process ensures quick and reliable installation.
Reduces the risk of disconnection, enhancing safety and efficiency.

Typical Uses of the JST 1.25-3, R Series Uninsulated Crimp Ring Terminal, 3mm Stud Size, 0.25mm² to 1.65mm², 22AWG to 16AWG

Automotive Wiring: Ideal for use in vehicle electrical systems.
Industrial Machinery: Suitable for connecting wires in various types of machinery.
Home Appliances: Typically utilised in the assembly of household electrical appliances.
Electronic Devices: Perfect for internal connections within electronic devices.
Renewable Energy Systems: Applicable in solar panel installations and wind turbines.
Electrical Panels: Frequently used in electrical distribution and control panels.
