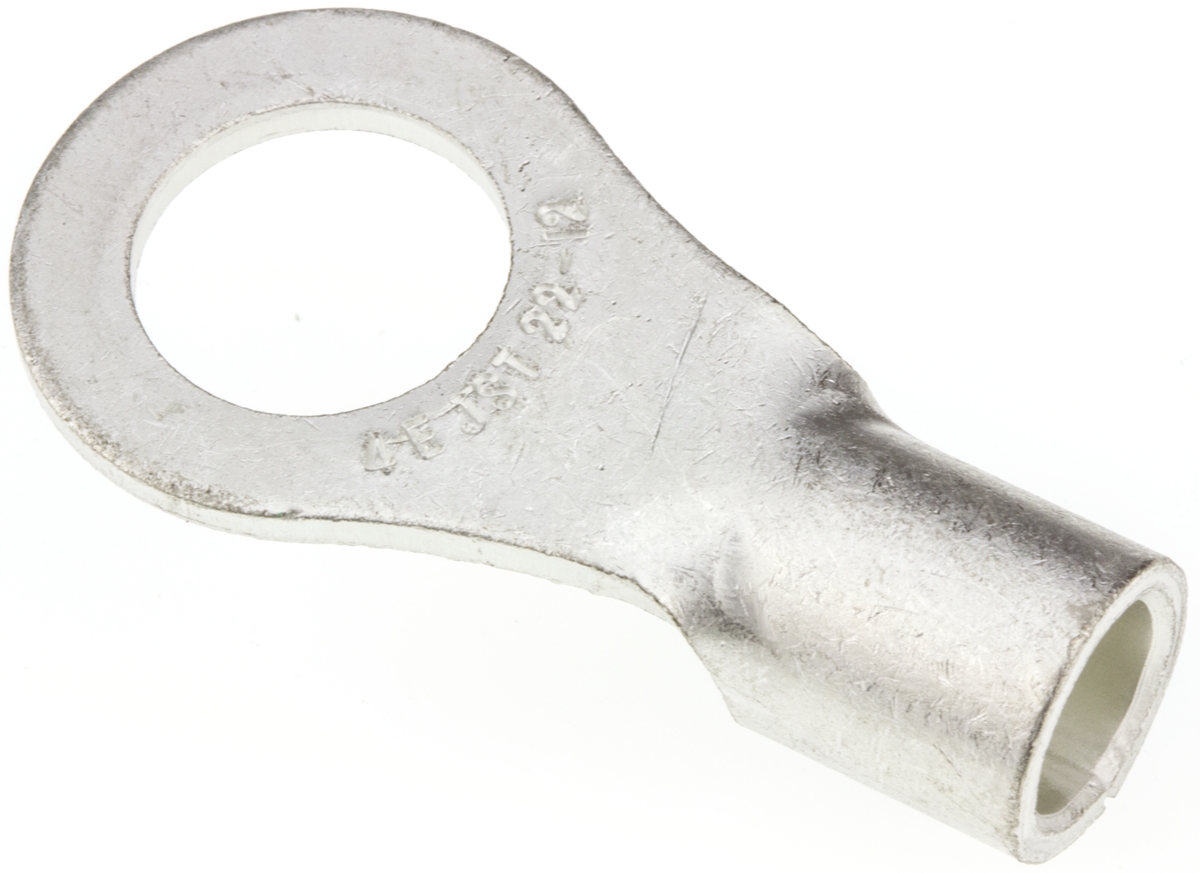

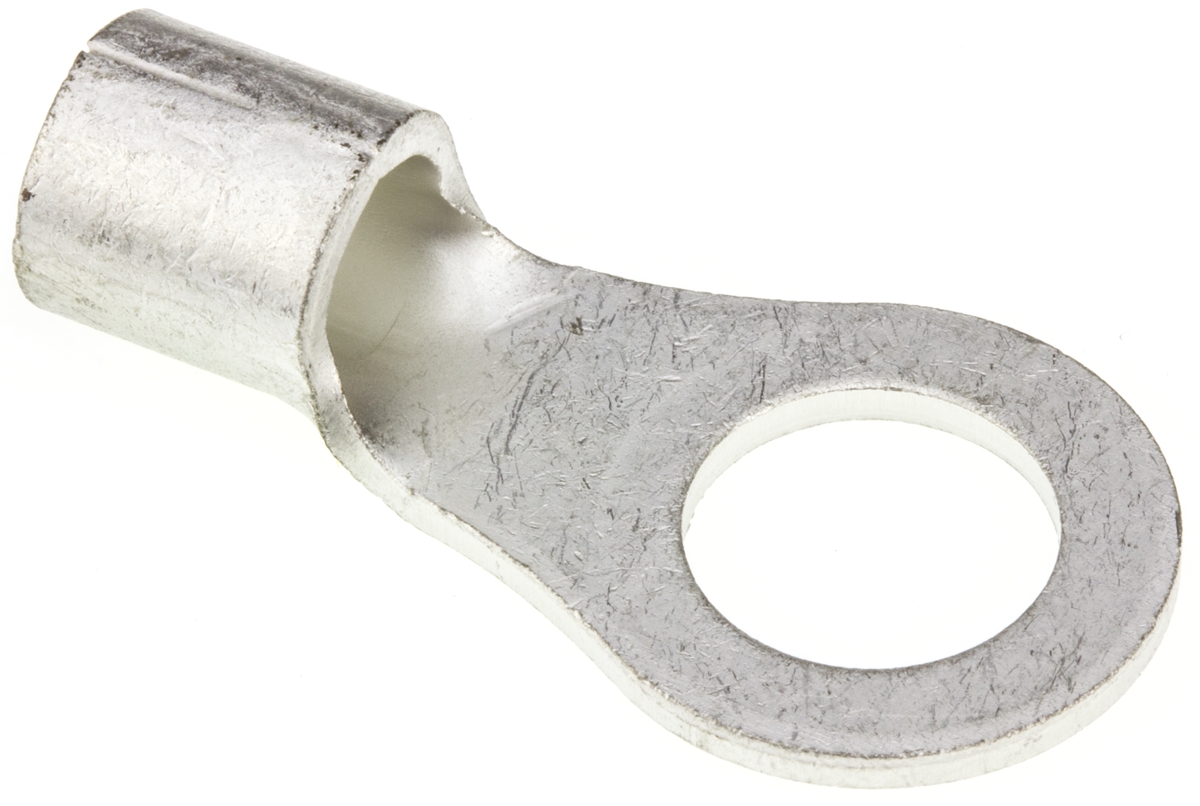

JST R Series Uninsulated Crimp Ring Terminal, 12mm Stud Size, 16.78mm² to 26.66mm², 4AWG to 4AWG

  • Enrgtech Part No: ET14004571
  • |
  • Manufacturer Part No:

    22-12

  • |
  • Manufacturer: JST
22-12 JST R Series Uninsulated Crimp Ring Terminal, 12mm Stud Size, 16.78mm² to 26.66mm², 4AWG to 4AWG
22-12
JST

Product Information

Maximum Wire Size mm²:
26.66mm²
Series:
R
Minimum Wire Size AWG:
4AWG
Thickness:
1.8mm
Stud Size:
12mm
Inner Ring Diameter:
13mm
Outer Ring Diameter:
22mm
Overall Length:
42.5mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
4AWG
Minimum Wire Size mm²:
16.78mm²
RoHs Compliant
Checking for live stock

This is R Series Uninsulated Crimp Ring Terminal 12mm Stud Size 16.78mm² to 26.66mm² 4AWG to 4AWG manufactured by JST. The manufacturer part number is 22-12. The wire has a maximum size of 26.66mm². The product r, is a highly preferred choice for users. While the minimum wire size AWG includes 4awg. It is 1.8mm thick. It has a standard 12mm size stud . Moreover, the inner ring is about 13mm in diameter . In addition, its outlet ring diameter is about 22mm . It has an overall length of 42.5mm. Insulation Option: uninsulated. Its maximum wires size includes 4awg. On the other hand, the wire has 16.78mm² of minimum size.

pdf icon
Uninsulated Crimp Ring Terminals(Technical Reference)
