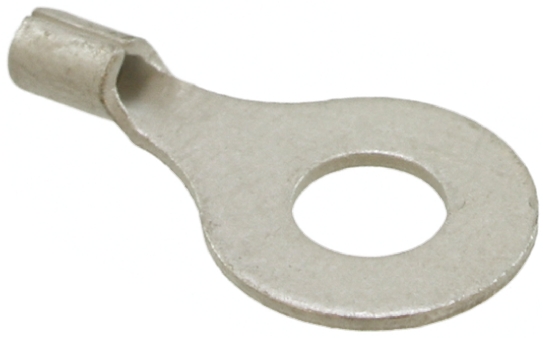

Molex VersaKrimp Series Uninsulated Tin Plated Crimp Ring Terminal, M5 (#10) Stud Size, 0.5mm² to 1mm²

19323-0005 Molex VersaKrimp Series Uninsulated Tin Plated Crimp Ring Terminal, M5 (#10) Stud Size, 0.5mm² to 1mm²
Molex

Product Information

Maximum Wire Size mm²:
1mm²
Series:
VersaKrimp
Thickness:
0.71mm
Stud Size:
M5 (#10)
Inner Ring Diameter:
5.39mm
Outer Ring Diameter:
11.86mm
Contact Plating:
Tin
Overall Length:
15.2mm
Insulation:
Uninsulated
Minimum Wire Size mm²:
0.5mm²
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is VersaKrimp Series Uninsulated Tin Plated Crimp Ring Terminal M5 (#10) Stud Size 0.5mm² to 1mm² manufactured by Molex. The manufacturer part number is 19323-0005. The wire has a maximum size of 1mm². The product versakrimp, is a highly preferred choice for users. It is 0.71mm thick. It has a standard m5 (#10) size stud . Moreover, the inner ring is about 5.39mm in diameter . In addition, its outlet ring diameter is about 11.86mm . The high-quality tin is used as contact plating material. It has an overall length of 15.2mm. Insulation Option: uninsulated. On the other hand, the wire has 0.5mm² of minimum size. The product is made from sturdy copper alloy materials.

pdf icon
Line Drawing(Technical Reference)
pdf icon
VersaKrimp™ Un-insulated Metric Ring Terminals(Technical Reference)
pdf icon
VersaKrimp and Avikrimp Ring Terminals Brochure(Technical Reference)
