Molex 19193 Series Uninsulated Tin Plated Crimp Ring Terminal, M6 (1/4) Stud Size, 6.6mm² to 10.5mm², 8AWG to 8AWG

19193-0152 Molex 19193 Series Uninsulated Tin Plated Crimp Ring Terminal, M6 (1/4) Stud Size, 6.6mm² to 10.5mm², 8AWG to 8AWG
Molex

Product Information

Minimum Wire Size mm²:
6.6mm²
Maximum Wire Size mm²:
10.5mm²
Minimum Wire Size AWG:
8AWG
Thickness:
1.14mm
Stud Size:
M6 (1/4)
Inner Ring Diameter:
6.73mm
Outer Ring Diameter:
12.26mm
Contact Plating:
Tin
Overall Length:
24.99mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
8AWG
Contact Material:
Copper
Series Number:
0152
RoHs Compliant
Checking for live stock

This is 19193 Series Uninsulated Tin Plated Crimp Ring Terminal M6 (1/4) Stud Size 6.6mm² to 10.5mm² 8AWG to 8AWG manufactured by Molex. The manufacturer part number is 19193-0152. On the other hand, the wire has 6.6mm² of minimum size. The wire has a maximum size of 10.5mm². While the minimum wire size AWG includes 8awg. It is 1.14mm thick. It has a standard m6 (1/4) size stud . Moreover, the inner ring is about 6.73mm in diameter . In addition, its outlet ring diameter is about 12.26mm . The high-quality tin is used as contact plating material. It has an overall length of 24.99mm. Insulation Option: uninsulated. Its maximum wires size includes 8awg. The product is made from sturdy copper materials. It carries [Serial Number] serial number.

pdf icon
Datasheet(Technical Reference)
pdf icon

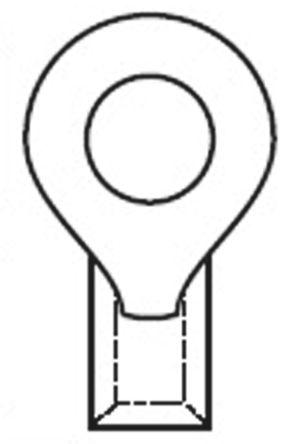

Line Drawing(Technical Reference)
