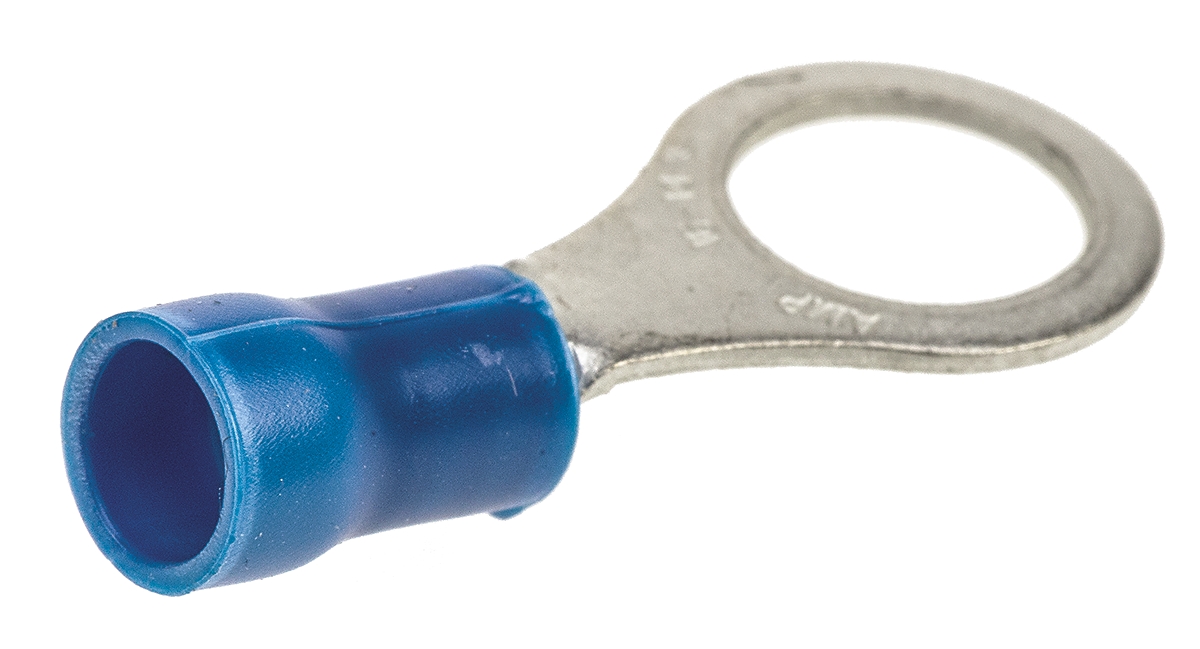

TE Connectivity PLASTI-GRIP Series Tin Plated Crimp Ring Terminal, M8 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG, Blue

34163 TE Connectivity PLASTI-GRIP Series Tin Plated Crimp Ring Terminal, M8 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG, Blue
34163
TE Connectivity

Product Information

Maximum Wire Size mm²:
2.6mm²
Series:
PLASTI-GRIP
Colour:
Blue
Minimum Wire Size AWG:
16AWG
Thickness:
0.79mm
Stud Size:
M8
Outer Ring Diameter:
11.91mm
Inner Ring Diameter:
8.33mm
Insulation Material:
Vinyl
Contact Plating:
Tin
Overall Length:
27.69mm
Insulation:
Insulated
Maximum Wire Size AWG:
14AWG
Minimum Wire Size mm²:
1mm²
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is PLASTI-GRIP Series Tin Plated Crimp Ring Terminal M8 Stud Size 1mm² to 2.6mm² 16AWG to 14AWG Blue manufactured by TE Connectivity. The manufacturer part number is 34163. The wire has a maximum size of 2.6mm². The product plasti-grip, is a highly preferred choice for users. It has a decent blue colour. While the minimum wire size AWG includes 16awg. It is 0.79mm thick. It has a standard m8 size stud . In addition, its outlet ring diameter is about 11.91mm . Moreover, the inner ring is about 8.33mm in diameter . It has a robust vinyl insulation material. The high-quality tin is used as contact plating material. It has an overall length of 27.69mm. Insulation Option: insulated. Its maximum wires size includes 14awg. On the other hand, the wire has 1mm² of minimum size. The product is made from sturdy copper materials.

pdf icon
COSSE(Technical Reference)
pdf icon
342146-1Terminals and Splices Ring & Spade Tongue Terminals Product Information(Technical Reference)
