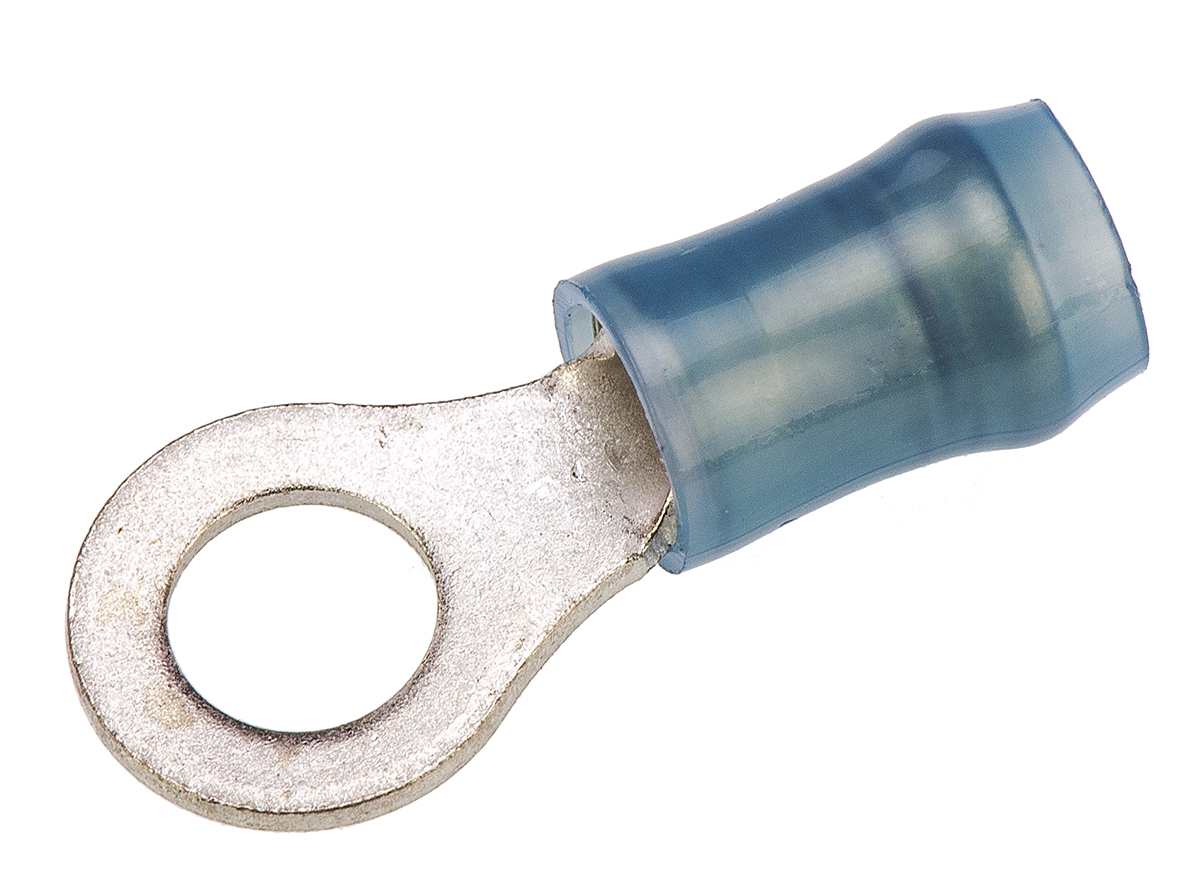

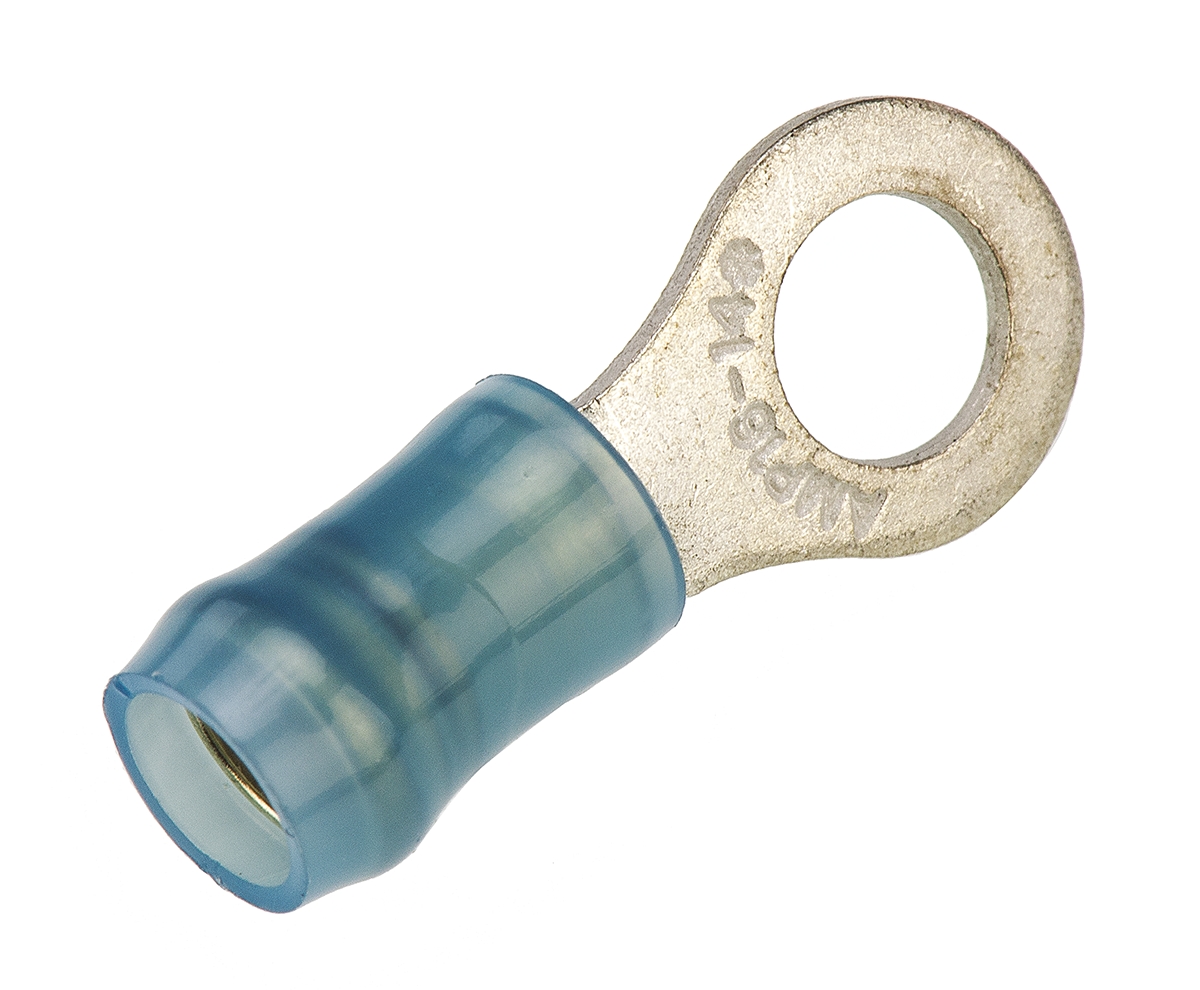

TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG

36160 TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG
36160
TE Connectivity

Product Information

Maximum Wire Size mm²:
2.6mm²
Series:
PIDG
Colour:
Blue
Minimum Wire Size AWG:
16AWG
Stud Size:
M5
Outer Ring Diameter:
8.71mm
Inner Ring Diameter:
5mm
Insulation Material:
Nylon
Contact Plating:
Tin
Overall Length:
21.82mm
Insulation:
Insulated
Maximum Wire Size AWG:
14AWG
Minimum Wire Size mm²:
1mm²
Contact Material:
Copper
RoHs Compliant
Checking for live stock

This is PIDG Series Insulated Tin Plated Crimp Ring Terminal M5 Stud Size 1mm² to 2.6mm² 16AWG to 14AWG manufactured by TE Connectivity. The manufacturer part number is 36160. The wire has a maximum size of 2.6mm². The product pidg, is a highly preferred choice for users. It has a decent blue colour. While the minimum wire size AWG includes 16awg. It has a standard m5 size stud . In addition, its outlet ring diameter is about 8.71mm . Moreover, the inner ring is about 5mm in diameter . It has a robust nylon insulation material. The high-quality tin is used as contact plating material. It has an overall length of 21.82mm. Insulation Option: insulated. Its maximum wires size includes 14awg. On the other hand, the wire has 1mm² of minimum size. The product is made from sturdy copper materials.

pdf icon
Crimp,ring tongue,PIDG,14-16awg,21.82mm(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 36160 on website for other similar products.
We accept all major payment methods for all products including ET13803714. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with 36160 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ring Terminals category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity PIDG Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 1mm² to 2.6mm², 16AWG to 14AWG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13803714 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13803714.
Yes. We ship 36160 Internationally to many countries around the world.
