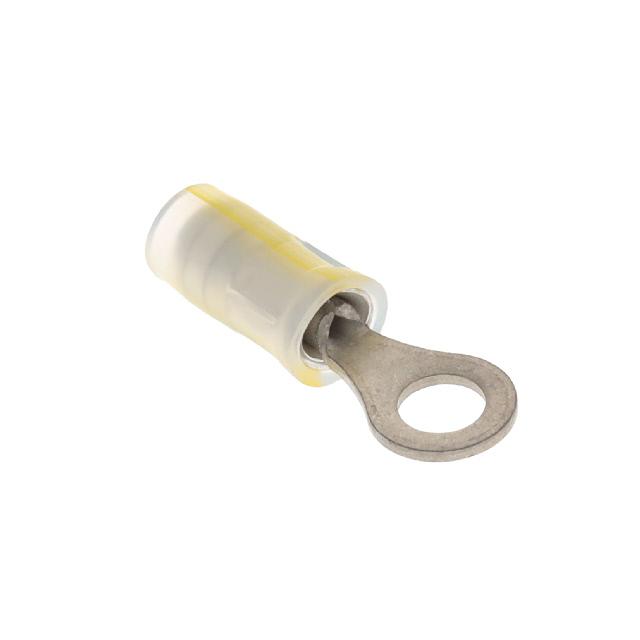

TE Connectivity AMP Connectors 696420-3

696420-3 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Thickness:
0.027" (0.69mm)
Material - Insulation:
Polyvinylidene Fluoride (PVDF)
Length - Overall:
0.797" (20.24mm)
REACH Status:
REACH Unaffected
edacadModel:
696420-3 Models
Insulation Diameter:
-
edacadModelUrl:
/en/models/2309772
Terminal Type:
Circular
Package:
Bulk
Wire Gauge:
24-26 AWG
Width - Outer Edges:
0.250" (6.35mm)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Crimp
standardLeadTime:
39 Weeks
Stud/Tab Size:
6 Stud
Features:
Radiation Resistant, Serrated Termination
Mounting Type:
Free Hanging (In-Line)
Color:
Natural
Series:
PIDG
Insulation:
Insulated
Contact Material:
Copper
Base Product Number:
696420
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 696420-3. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It is 0.027" (0.69mm) thick. It is designed from highly reliable polyvinylidene fluoride (pvdf) insulating material. The product has an integral 0.797" (20.24mm) overall length. In addition, it is reach unaffected. The terminal is a circular type. It is shipped in bulk package . Moreover, the product has a wire gauge of 24-26 awg. Its outer edges are 0.250" (6.35mm) wide. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features crimp termination style. It has a long 39 weeks standard lead time. The product consists of 6 stud. The splendid features of the product include radiation resistant, serrated termination. The product is available in free hanging (in-line) configuration. It has a classic natural colour. The product pidg, is a highly preferred choice for users. Insulation Option: insulated. The product is made from sturdy copper materials. Moreover, it corresponds to 696420, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
696420-3(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 696420-3 on website for other similar products.
We accept all major payment methods for all products including ET10888484. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 696420-3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Ring Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 696420-3. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 696420-3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10888484 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10888484.
Yes. We ship 696420-3 Internationally to many countries around the world.
