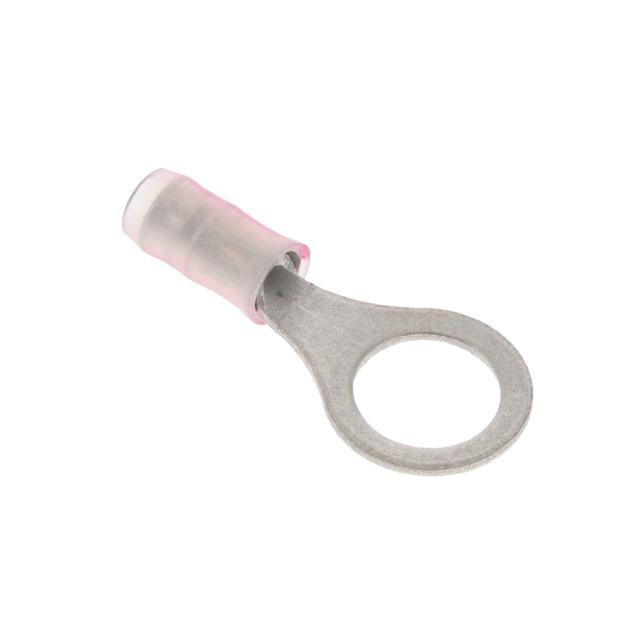

TE Connectivity AMP Connectors 696422-8

696422-8 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Thickness:
0.031" (0.79mm)
Material - Insulation:
Polyvinylidene Fluoride (PVDF)
Length - Overall:
1.083" (27.51mm)
edacadModel:
696422-8 Models
Insulation Diameter:
0.080" ~ 0.125" (2.03mm ~ 3.18mm)
edacadModelUrl:
/en/models/2309774
Terminal Type:
Circular
Manufacturer:
TE Connectivity AMP Connectors
Wire Gauge:
16-22 AWG
Width - Outer Edges:
0.469" (11.91mm)
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Crimp
standardLeadTime:
32 Weeks
Stud/Tab Size:
5/16 Stud
Features:
Radiation Resistant, Serrated Termination
Mounting Type:
Free Hanging (In-Line)
Color:
Natural, Red Stripe
Series:
PIDG
Packaging:
Bulk
Insulation:
Insulated
ECCN:
EAR99
Base Product Number:
696422
Contact Material:
Copper
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 696422-8. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It is 0.031" (0.79mm) thick. It is designed from highly reliable polyvinylidene fluoride (pvdf) insulating material. The product has an integral 1.083" (27.51mm) overall length. The product's insulation diameter includes 0.080" ~ 0.125" (2.03mm ~ 3.18mm). The terminal is a circular type. The te connectivity amp connectors's product offers user-desired applications. Moreover, the product has a wire gauge of 16-22 awg. Its outer edges are 0.469" (11.91mm) wide. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features crimp termination style. It has a long 32 weeks standard lead time. The product consists of 5/16 stud. The splendid features of the product include radiation resistant, serrated termination. The product is available in free hanging (in-line) configuration. It has a classic natural, red stripe colour. The product pidg, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Insulation Option: insulated. The product is designated with the ear99 code number. Moreover, it corresponds to 696422, a base product number of the product. The product is made from sturdy copper materials.

pdf icon
696422-8(Datasheets)
