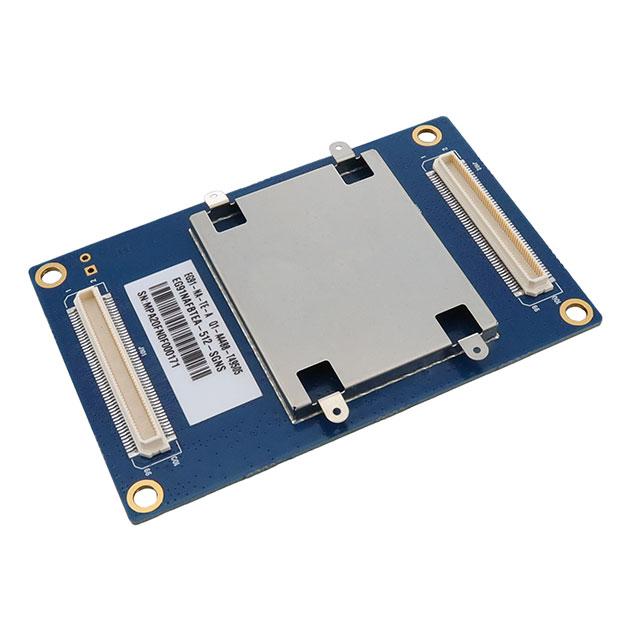

Quectel EG91NAFBTEA-512-SGNS

EG91NAFBTEA-512-SGNS Quectel
EG91NAFBTEA-512-SGNS
Quectel

Product Information

HTSUS:
8517.62.0090
RoHS Status:
RoHS Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-35°C ~ 75°C
Memory Size:
-
Package / Case:
Module
Current - Transmitting:
29mA
Current - Receiving:
29mA
Modulation:
-
Data Rate:
42Mbps
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation
Protocol:
BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS, WCDMA
Utilized IC / Part:
-
Mounting Type:
Surface Mount
Antenna Type:
Antenna Not Included
Series:
-
Sensitivity:
-
Serial Interfaces:
I2C, PCM, SPI, UART, USB
Frequency:
-
Voltage - Supply:
3.3V ~ 4.3V
Power - Output:
-
Base Product Number:
EG91
ECCN:
5A992C SC
Checking for live stock

This is manufactured by Quectel. The manufacturer part number is EG91NAFBTEA-512-SGNS. It is assigned with possible HTSUS value of 8517.62.0090. The product is rohs compliant. The product has -35°c ~ 75°c operating temperature range. Moreover, the product comes in module. It carries 29ma transmission current. The current receiving of the product is 29ma. It has a maximised data speed rate of 42mbps. It is shipped in box package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation. The product features a beidou, galileo, glonass, gps, gnss, lte, umts, wcdma protocol. The product is available in surface mount configuration. It is a antenna not included antenna. It features i2c, pcm, spi, uart, usb serial interface. It has optimum voltage supply of 3.3v ~ 4.3v. Moreover, it corresponds to eg91, a base product number of the product. The product is designated with the 5a992c sc code number.

pdf icon
PCN_2023041303 4/13/23(PCN Assembly/Origin)
pdf icon
EG91 Series(Datasheets)
pdf icon
EG91-NA-FB Firmware 23/Oct/2023(PCN Design/Specification)
pdf icon
All Parts Pkg Chgs 1/Nov/2021(PCN Packaging)
