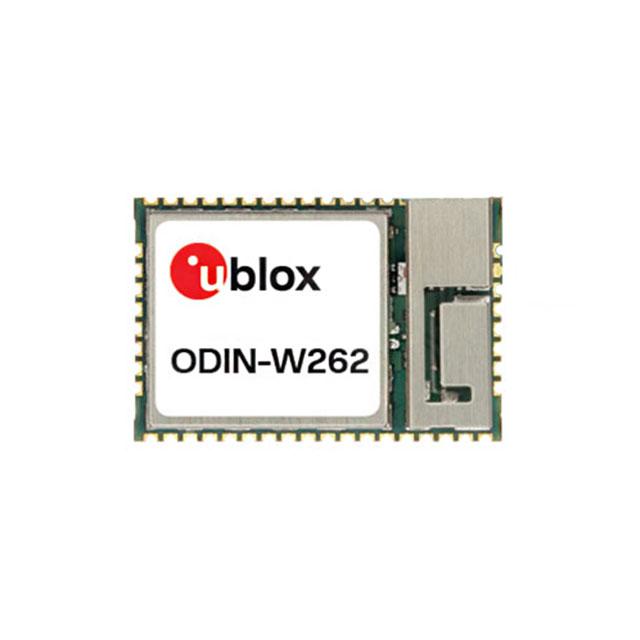

U-Blox ODIN-W262-05X

ODIN-W262-05X U-Blox
U-Blox

Product Information

HTSUS:
8517.62.0090
RoHS Status:
RoHS Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-40°C ~ 85°C
Memory Size:
2MB Flash, 256kB RAM
Package / Case:
52-SMD Module
Current - Transmitting:
250mA
Current - Receiving:
140mA
Modulation:
4DQPSK, 8DPSK, CCK, DSSS, GFSK, OFDM
Data Rate:
130Mbps
Moisture Sensitivity Level (MSL):
4 (72 Hours)
RF Family/Standard:
Bluetooth, WiFi
Protocol:
802.11a/b/g/n, Bluetooth v4.0 +EDR
Utilized IC / Part:
STM32, TI WL8
Mounting Type:
Surface Mount
Antenna Type:
Integrated, Chip
Series:
ODIN-W2
Sensitivity:
-95dBm
Serial Interfaces:
UART
Packaging:
Tape & Reel (TR)
Frequency:
2.4GHz ~ 2.5GHz, 5.18GHz ~ 5.825GHz
Voltage - Supply:
3V ~ 3.6V
Power - Output:
15dBm
Base Product Number:
ODIN-W262
ECCN:
5A992C
Checking for live stock

This is manufactured by U-Blox. The manufacturer part number is ODIN-W262-05X. It is assigned with possible HTSUS value of 8517.62.0090. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. It holds a typical memory size of 2mb flash, 256kb ram. Moreover, the product comes in 52-smd module. It carries 250ma transmission current. The current receiving of the product is 140ma. Features 4dqpsk, 8dpsk, cck, dsss, gfsk, ofdm modulation. It has a maximised data speed rate of 130mbps. Its typical moisture sensitivity level is 4 (72 hours). The standard RF Family of the product includes bluetooth, wifi. The product features a 802.11a/b/g/n, bluetooth v4.0 +edr protocol. Additionally, [Utilised IC / Part] is the used part of the product. The product is available in surface mount configuration. It is a integrated, chip antenna. The product odin-w2, is a highly preferred choice for users. The sensitivity given includes -95dbm. It features uart serial interface. In addition, tape & reel (tr) is the available packaging type of the product. Supplied with 2.4ghz ~ 2.5ghz, 5.18ghz ~ 5.825ghz of frequency. It has optimum voltage supply of 3v ~ 3.6v. The product has an output power 15dbm. Moreover, it corresponds to odin-w262, a base product number of the product. The product is designated with the 5a992c code number.

pdf icon
ODIN-W26 EOL 14/Jan/2021(PCN Obsolescence/ EOL)
pdf icon
Cloud PNs Locate Service 11/Dec/2023(PCN Design/Specification)
pdf icon
Hardware modification 30/Apr/2020(PCN Design/Specification)
pdf icon
ODIN-W262 SRRC certification expiration 11/Dec/2023(PCN Other)
pdf icon
General Terms and Conditions of Sales of u-blox AG(Other Related Documents)
