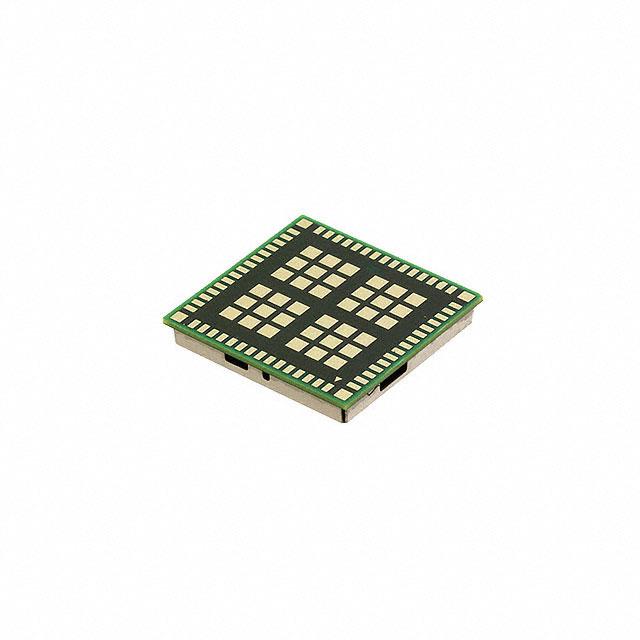

Texas Instruments WL1805MODGBMOCT

WL1805MODGBMOCT Texas Instruments
WL1805MODGBMOCT
Texas Instruments

Product Information

Dimensions:
13.5 x 13.4 x 2mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+70 °C
Minimum Operating Supply Voltage:
2.9 V
Maximum Operating Band 1 Frequency:
2.48GHz
Height:
2mm
Modulation Technique:
GFSK
Width:
13.4mm
Length:
13.5mm
Minimum Operating Temperature:
-20 °C
Maximum Operating Supply Voltage:
4.8 V
Number of Operating Bands:
1
Minimum Operating Band 1 Frequency:
2.4GHz
Technology:
Wi-Fi
Pin Count:
100
HTSUS:
8517.62.0090
RoHS Status:
ROHS3 Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-20°C ~ 70°C
Memory Size:
-
Package / Case:
Module
Current - Transmitting:
238mA ~ 420mA
Current - Receiving:
49mA ~ 85mA
Modulation:
CCK, DSSS, GFSK, OFDM
REACH Status:
REACH Unaffected
edacadModel:
WL1805MODGBMOCT Models
Data Rate:
54Mbps
edacadModelUrl:
/en/models/4473994
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
4 (72 Hours)
RF Family/Standard:
Bluetooth, WiFi
standardLeadTime:
20 Weeks
Protocol:
802.11b/g/n, Bluetooth 4.2
Utilized IC / Part:
-
Mounting Type:
Surface Mount
Antenna Type:
-
Series:
WiLink™
Sensitivity:
-96.3dBm
Serial Interfaces:
SDIO, UART
Frequency:
2.4GHz
Voltage - Supply:
2.9V ~ 4.8V
Power - Output:
17.3dBm
Base Product Number:
WL1805
ECCN:
5A992C
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is WL1805MODGBMOCT. The given dimensions of the product include 13.5 x 13.4 x 2mm. The product is available in surface mount configuration. It has a maximum operating temperature of +70 °c. While its minimum operating supply voltage is 2.9 v. It has a maximum 2.48ghz operating band 1 frequency . In addition, the height is 2mm. It is created with gfsk modulation technique . Furthermore, the product is 13.4mm wide. Its accurate length is 13.5mm. Whereas, the minimum operating temperature of the product is -20 °c. It has 4.8 v maximum operating supply voltage. It has 1 operating bands . Moreover, it has a minimum 2.4ghz operating band 1 frequency . This product use wi-fi technology. It contains 100 pins. It is assigned with possible HTSUS value of 8517.62.0090. The product is rohs3 compliant. The product has -20°c ~ 70°c operating temperature range. Moreover, the product comes in module. It carries 238ma ~ 420ma transmission current. The current receiving of the product is 49ma ~ 85ma. Features cck, dsss, gfsk, ofdm modulation. In addition, it is reach unaffected. It has a maximised data speed rate of 54mbps. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 4 (72 hours). The standard RF Family of the product includes bluetooth, wifi. It has a long 20 weeks standard lead time. The product features a 802.11b/g/n, bluetooth 4.2 protocol. The product wilink™, is a highly preferred choice for users. The sensitivity given includes -96.3dbm. It features sdio, uart serial interface. Supplied with 2.4ghz of frequency. It has optimum voltage supply of 2.9v ~ 4.8v. The product has an output power 17.3dbm. Moreover, it corresponds to wl1805, a base product number of the product. The product is designated with the 5a992c code number.
