CEL UPG2415T6X-A

UPG2415T6X-A CEL
CEL

Product Information

Frequency Range:
50MHz ~ 6GHz
HTSUS:
8542.39.0001
Operating Temperature:
-45°C ~ 85°C

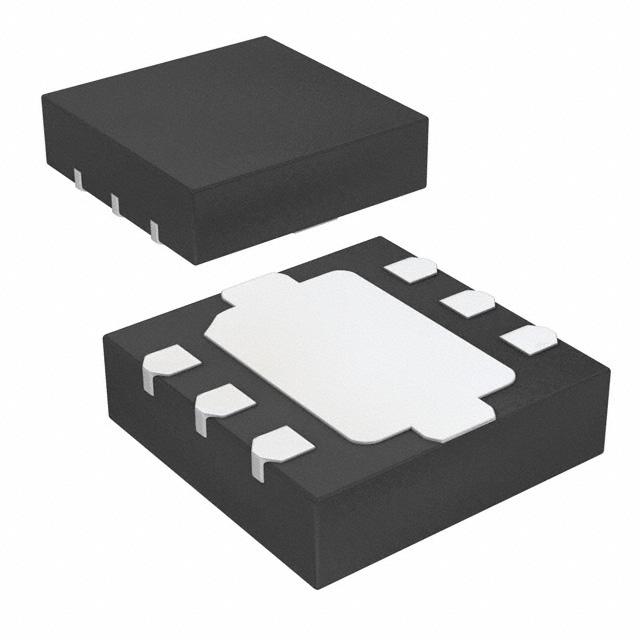

Package / Case:
6-XFDFN Exposed Pad
Test Frequency:
6GHz
REACH Status:
REACH Unaffected
RF Type:
WLAN
P1dB:
35dBm
Impedance:
50Ohm
Manufacturer:
CEL
IIP3:
60dBm
Isolation:
26dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
Features:
-
Insertion Loss:
0.55dB
Series:
-
Supplier Device Package:
6-TSON
Packaging:
Bulk
Voltage - Supply:
-
Topology:
Reflective
ECCN:
EAR99
Checking for live stock

This is manufactured by CEL. The manufacturer part number is UPG2415T6X-A. The frequency range includes 50mhz ~ 6ghz. It is assigned with possible HTSUS value of 8542.39.0001. The product has -45°c ~ 85°c operating temperature range. Moreover, the product comes in 6-xfdfn exposed pad. It features a test frequency of 6ghz. In addition, it is reach unaffected. This is a sort of wlan RF. The output power level of the product is 35dbm. It has an impedance value of 50ohm. The cel's product offers user-desired applications. The IIP3 value of 60dbm. Features a 26db isolation. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. Allows 0.55db of insertion loss. 6-tson is the supplier device package value. In addition, bulk is the available packaging type of the product. Topology includes reflective. The product is designated with the ear99 code number.

pdf icon
EOL 12/Aug/2016(PCN Obsolescence/ EOL)
pdf icon
EOL Revision 10/Nov/2016(PCN Obsolescence/ EOL)
pdf icon
RF Wireless Brochure(Datasheets)
