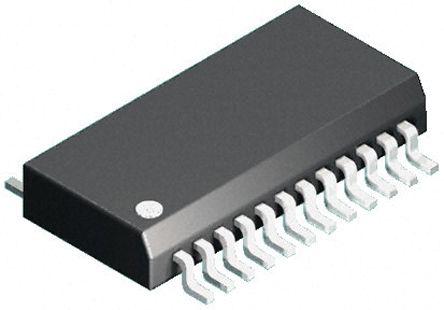

Analog Devices Hittite HMC252QS24E, RF Switch 3GHz Single SP6T 26dB Isolation CMOS/TTL 3.3 → 5 V dc 24-Pin QSOP

HMC252QS24E Analog Devices Hittite , RF Switch 3GHz Single SP6T 26dB Isolation CMOS/TTL 3.3 → 5 V dc 24-Pin QSOP
Analog Devices

Product Information

Minimum Isolation:
26dB
Dimensions:
8.75 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Insertion Loss:
1.8dB
Series:
Hittite
Number of Switches:
1
Switch Configuration:
Single SP6T
Height:
1.5mm
Width:
4mm
Length:
8.75mm
Package Type:
QSOP
Maximum Frequency:
3GHz
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
3.3 V dc
Maximum Operating Supply Voltage:
5 V dc
Switching Speed:
120ns
Maximum Operating Temperature:
+85 °C
Technology:
CMOS/TTL
Pin Count:
24
RoHs Compliant
Checking for live stock

This is Hittite RF Switch 3GHz Single SP6T 26dB Isolation CMOS/TTL 3.3 → 5 V dc 24-Pin QSOP manufactured by Analog Devices. The manufacturer part number is HMC252QS24E. 26db is the minimum isolation offered . The given dimensions of the product include 8.75 x 4 x 1.5mm. The product is available in surface mount configuration. It has a maximum 1.8db insertion loss . The product hittite, is a highly preferred choice for users. The number of switches include 1 . It is created with a/an single sp6t switch configuration . In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of qsop. It features 3ghz of maximum frequency. Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 3.3 v dc. It has 5 v dc maximum operating supply voltage. It has about 120ns switching speed . It has a maximum operating temperature of +85 °c. This product use cmos/ttl technology. It contains 24 pins.

pdf icon
HMC252QS24 / 252QS24E, GaAs MMIC SP6T NON-REFLECTIVE SWITCH, DC - 3 GHz(Technical Reference)
