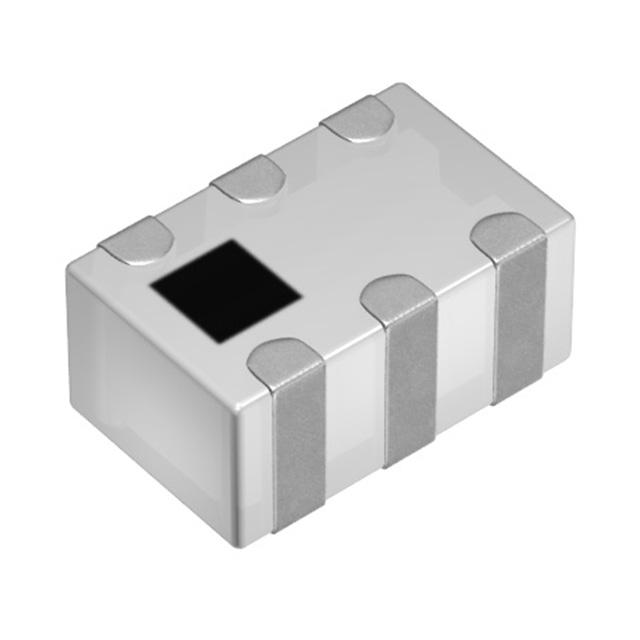

TDK Corporation DPX205850DT-4055A1

DPX205850DT-4055A1 TDK Corporation
TDK Corporation

Product Information

High Band Attenuation (min / max dB):
15.00dB / 21.00dB
HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Low Band Attenuation (min / max dB):
13.00dB / 28.00dB
Package / Case:
0805 (2012 Metric), 6 PC Pad
Type:
Diplexer
title:
DPX205850DT-4055A1
REACH Status:
REACH Unaffected
edacadModel:
DPX205850DT-4055A1 Models
edacadModelUrl:
/en/models/8126549
Manufacturer:
TDK Corporation
Return Loss (Low Band / High Band):
9.5dB / 9.5dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
10 Weeks
Frequency Bands (Low / High):
700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz
Mounting Type:
Surface Mount
Series:
DPX
Packaging:
Tape & Reel (TR)
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is DPX205850DT-4055A1. It features 15.00db / 21.00db of minimum and maximum high band attenuation. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. While 13.00db / 28.00db is the minimum or maximum low band attenuation. Moreover, the product comes in 0805 (2012 metric), 6 pc pad. It comes in diplexer configuration. In addition, it is reach unaffected. The tdk corporation's product offers user-desired applications. Furthermore, its low and high band return loss is 9.5db / 9.5db. Its typical moisture sensitivity level is 1 (unlimited). It has a long 10 weeks standard lead time. The low/high frequency band includes 700mhz ~ 1.99ghz / 2.4ghz ~ 5.85ghz. The product is available in surface mount configuration. The product dpx, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
Additional Manufacturing Site 08/Feb/2019(PCN Assembly/Origin)
pdf icon
DPX205850DT-4055A1(Datasheets)
