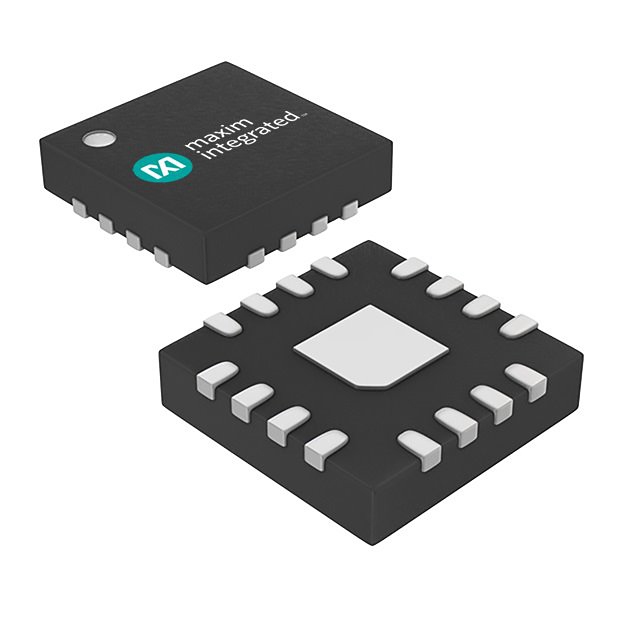

Maxim Integrated MAX9947ETE+, RF Transceiver 1.1MHz to 4.17MHz 16-Pin TQFN

MAX9947ETE- Maxim Integrated MAX9947ETE+, RF Transceiver 1.1MHz to 4.17MHz 16-Pin TQFN
Maxim Integrated

Product Information

Dimensions:
3 x 3 x 0.75mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
3 V
Maximum Operating Band 1 Frequency:
4.17MHz
Height:
0.75mm
Modulation Technique:
OOK
Width:
3mm
Length:
3mm
Package Type:
TQFN
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Number of Operating Bands:
1
Minimum Operating Band 1 Frequency:
1.1MHz
Maximum Operating Temperature:
+105 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
16-TQFN (3x3)
Operating Temperature:
-40°C ~ 85°C
Memory Size:
-
Package / Case:
16-WFQFN Exposed Pad
Type:
TxRx Only
Current - Transmitting:
23mA
Current - Receiving:
23mA
Modulation:
OOK
REACH Status:
REACH Unaffected
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
AISG
standardLeadTime:
52 Weeks
Data Rate (Max):
115.2kbps
Protocol:
-
Mounting Type:
Surface Mount
Series:
-
Serial Interfaces:
-
Frequency:
2.176MHz
Voltage - Supply:
3V ~ 5.5V
Power - Output:
12dBm
Sensitivity:
-
Base Product Number:
MAX9947
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is RF Transceiver 1.1MHz to 4.17MHz 16-Pin TQFN manufactured by Maxim Integrated. The manufacturer part number is MAX9947ETE+. The given dimensions of the product include 3 x 3 x 0.75mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 3 v. It has a maximum 4.17mhz operating band 1 frequency . In addition, the height is 0.75mm. It is created with ook modulation technique . Furthermore, the product is 3mm wide. Its accurate length is 3mm. The package is a sort of tqfn. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has 1 operating bands . Moreover, it has a minimum 1.1mhz operating band 1 frequency . It has a maximum operating temperature of +105 °c. It contains 16 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 16-tqfn (3x3) is the supplier device package value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 16-wfqfn exposed pad. It comes in txrx only configuration. It carries 23ma transmission current. The current receiving of the product is 23ma. Features ook modulation. In addition, it is reach unaffected. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes aisg. It has a long 52 weeks standard lead time. Robust and maximum data rate speed of 115.2kbps. Supplied with 2.176mhz of frequency. It has optimum voltage supply of 3v ~ 5.5v. The product has an output power 12dbm. Moreover, it corresponds to max9947, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - MAX9947ETE+(Technical Reference)
pdf icon
Maxim Integrated RoHS3 Cert(Environmental Information)
pdf icon
Red Phosphorous Certificate(Environmental Information)
pdf icon
Maxim Integrated REACH211(Environmental Information)
pdf icon
MAX9947(Datasheets)
pdf icon
Simplify AISG Control Systems by Integrating the Hardware Discrete Transceiver(Mfg Application Notes)
pdf icon
General Layout Guidelines for RF and Mixed-Signal PCBs(Mfg Application Notes)
