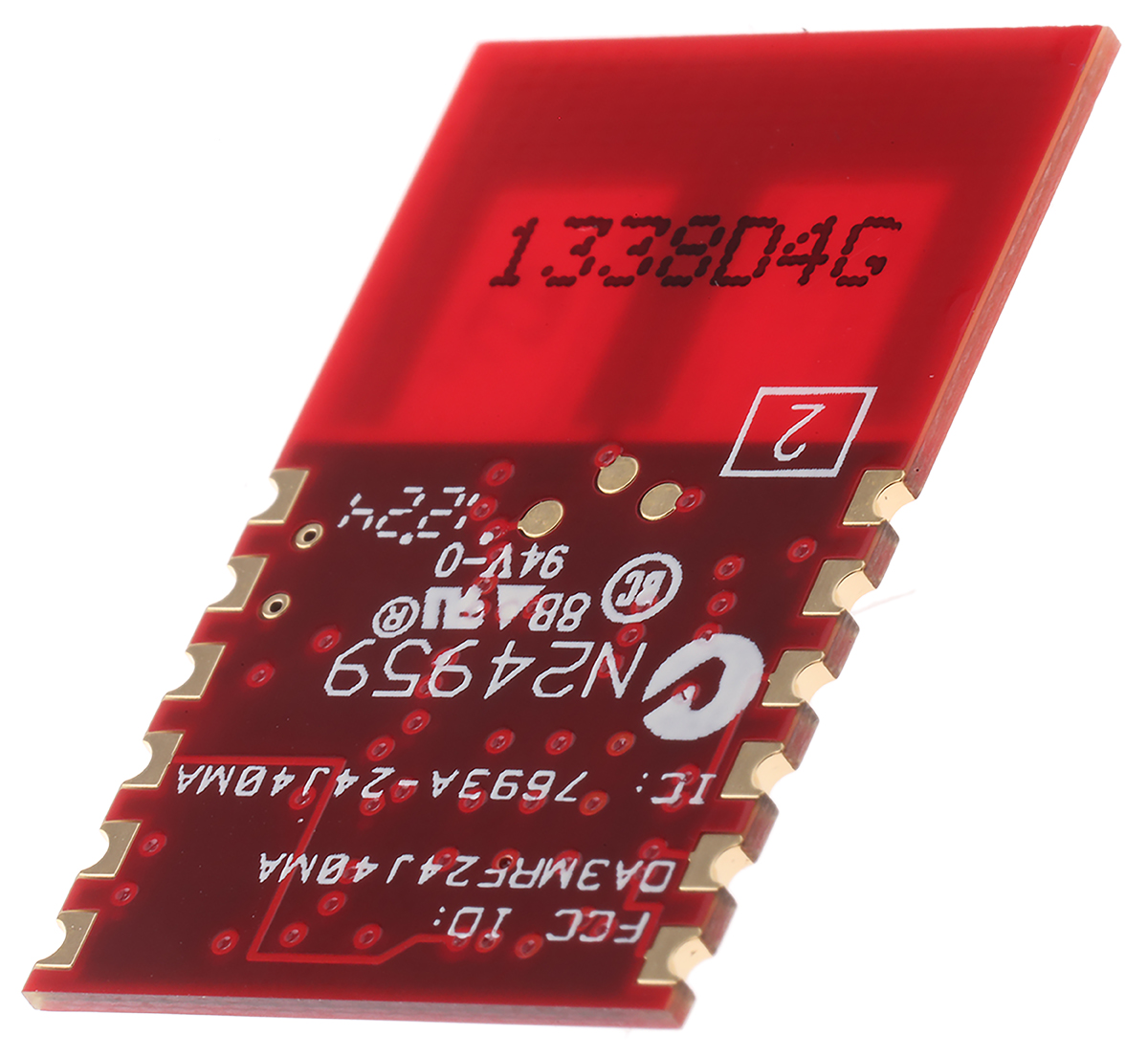

Microchip MRF24J40MA-I/RM, Zigbee Transceiver 2400MHz to 2.48GHz 2.4 → 3.6 V 12-Pin

Enrgtech Part No: ET13850744
|
Manufacturer Part No:
MRF24J40MA-I/RM
|
Manufacturer: Microchip

MRF24J40MA-I-RM Microchip MRF24J40MA-I/RM, Zigbee Transceiver 2400MHz to 2.48GHz 2.4 → 3.6 V 12-Pin

Product Information

Dimensions:

27.94 x 17.78 x 0.89mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

+85 °C

Minimum Operating Supply Voltage:

3.6 V

Maximum Operating Band 1 Frequency:

2.48GHz

Height:

0.89mm

Modulation Technique:

O-QPSK

Width:

17.78mm

Length:

27.94mm

Package Type:

Module

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

3.6 V

Checking for live stock

The Microchip MRF24J40MA-I/RM is a highly integrated, surface-mountable IEEE 802.15.4 radio frequency transceiver module operating in the 2.4GHz ISM band. This FCC-certified module comes with an integrated PCB antenna and matching circuitry, removing the complexities of RF design for developers. It is specifically optimised for ZigBee, MiWi, and other wireless sensor network protocols, offering a low-power solution for short-range communication in smart home, commercial, and industrial automation projects.

Reasons You Should Use the Module

This Microchip MRF24J40MA-I/RM pre-certified module reduces time-to-market by eliminating the need for complex RF circuit design and regulatory testing. It offers seamless wireless integration.

Integrated PCB antenna saves board space and reduces BOM costs.
FCC/IC/ETSI certification ensures global regulatory compliance out of the box.
Low power consumption extends battery life for remote sensor nodes.

Core Performance Features & Key Uses

This module provides a robust wireless link with a range of up to 400 feet, featuring hardware-accelerated CSMA-CA and hardware security encryption (AES-128). It is the primary choice for building mesh networks, wireless light switches, and automated meter reading systems.

Technical Specifications
Frequency: 2.4 GHz (ISM Band)
Data Rate: 250 kbps
Operating Voltage: 2.4V to 3.6V
Interface: 4-wire SPI
Tx Power: +0 dBm (typical).
Suitable Environments
Smart home and building automation
Industrial monitoring and wireless sensor networks
Inventory management and asset tracking
Energy management and smart lighting systems.

MRF24J40MA Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

MRF24J40MA User guide(Technical Reference)
