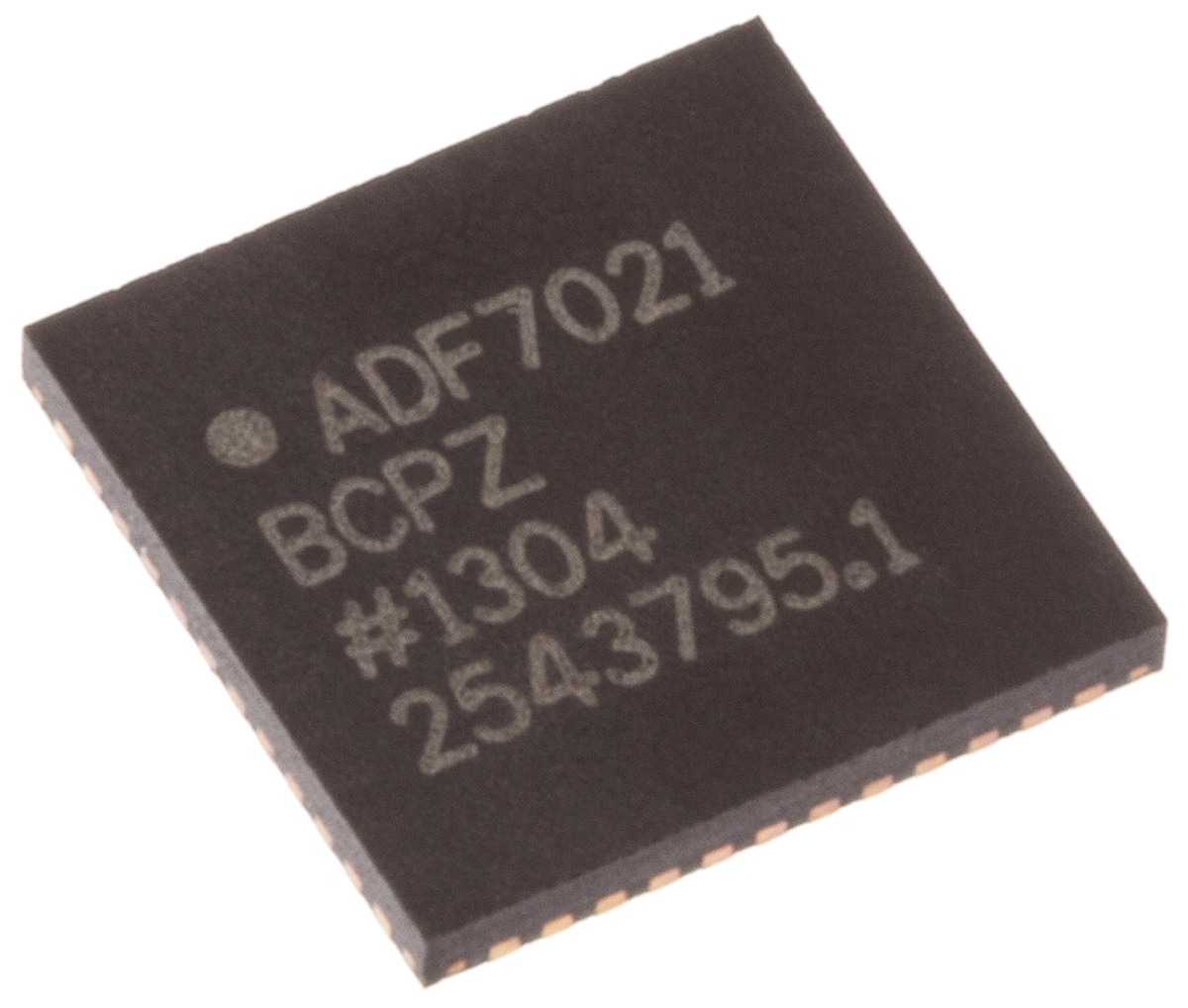

Analog Devices ADF7021BCPZ, RF Transceiver IC Dual Band 2.3 → 3.6 V 48-Pin LFCSP

ADF7021BCPZ Analog Devices , RF Transceiver IC Dual Band 2.3 → 3.6 V 48-Pin LFCSP
ADF7021BCPZ
Analog Devices

Product Information

Minimum Operating Band 2 Frequency:
862MHz
Dimensions:
7 x 7 x 0.83mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Operating Supply Voltage:
2.3 V
Maximum Operating Band 1 Frequency:
950MHz
Height:
0.83mm
Modulation Technique:
FSK, MSK
Width:
7mm
Length:
7mm
Maximum Operating Band 2 Frequency:
950MHz
Package Type:
LFCSP
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Number of Operating Bands:
2
Minimum Operating Band 1 Frequency:
80MHz
Technology:
Low IF/ISM Transceiver
Pin Count:
48
RoHs Compliant
Checking for live stock

This is RF Transceiver IC Dual Band 2.3 → 3.6 V 48-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is ADF7021BCPZ. The product has 862mhz of minimum operating band 2 frequency . The given dimensions of the product include 7 x 7 x 0.83mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. While its minimum operating supply voltage is 2.3 v. It has a maximum 950mhz operating band 1 frequency . In addition, the height is 0.83mm. It is created with fsk, msk modulation technique . Furthermore, the product is 7mm wide. Its accurate length is 7mm. It has a maximum operating of 950mhz band 2 frequency . The package is a sort of lfcsp. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has 2 operating bands . Moreover, it has a minimum 80mhz operating band 1 frequency . This product use low if/ism transceiver technology. It contains 48 pins.
