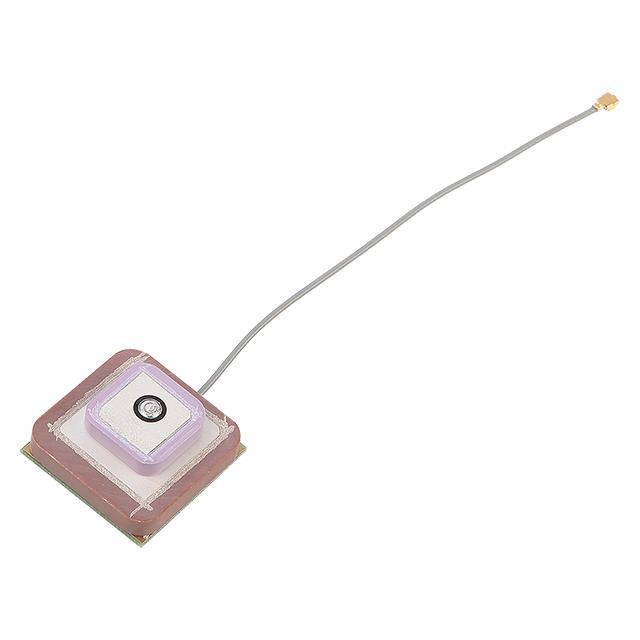

YIC ATIGGBL22580-100

ATIGGBL22580-100 YIC
YIC

Product Information

Frequency Range:
1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (1GHz ~ 2GHz)
Height (Max):
0.157" (4.00mm)
REACH Status:
REACH Unaffected
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS
Gain:
2.11dBi, 2.19dBi, -0.3dBi, -0.2dBi, 0.47dBi, 0.7dBi, 3.18dBi, 3.09dBi
Manufacturer:
YIC
Number of Bands:
4
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz
Termination:
IPEX
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
Cable - 100mm, LNA, Filter
Mounting Type:
Magnetic
Antenna Type:
Ceramic Patch
Series:
ATIGGB
Packaging:
Tray
VSWR:
2
Return Loss:
-4.66dB, -18.28dB, -21.45dB, -30.8dB
ECCN:
EAR99
Checking for live stock

This is manufactured by YIC. The manufacturer part number is ATIGGBL22580-100. The frequency range includes 1.217ghz ~ 1.237ghz, 1.559ghz ~ 1.563ghz, 1.574ghz ~ 1.576ghz, 1.594ghz ~ 1.61ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (1ghz ~ 2ghz) frequency group. Additionally, the 0.157" (4.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, galileo, glonass, gnss, gps. The 2.11dbi, 2.19dbi, -0.3dbi, -0.2dbi, 0.47dbi, 0.7dbi, 3.18dbi, 3.09dbi is the gain value of a bespoke product. The yic's product offers user-desired applications. It contains 4 bands. Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes navigation. While it has a frequency of 1.227ghz, 1.561ghz, 1.575ghz, 1.602ghz at center/band. The product features ipex termination style. It has a long 12 weeks standard lead time. The splendid features of the product include cable - 100mm, lna, filter. The product is available in magnetic configuration. It is a ceramic patch antenna. The product atiggb, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. VSWR Information: 2. It has a return loss of -4.66db, -18.28db, -21.45db, -30.8db. The product is designated with the ear99 code number.

pdf icon
ATIGGBL22580-100(Datasheets)
