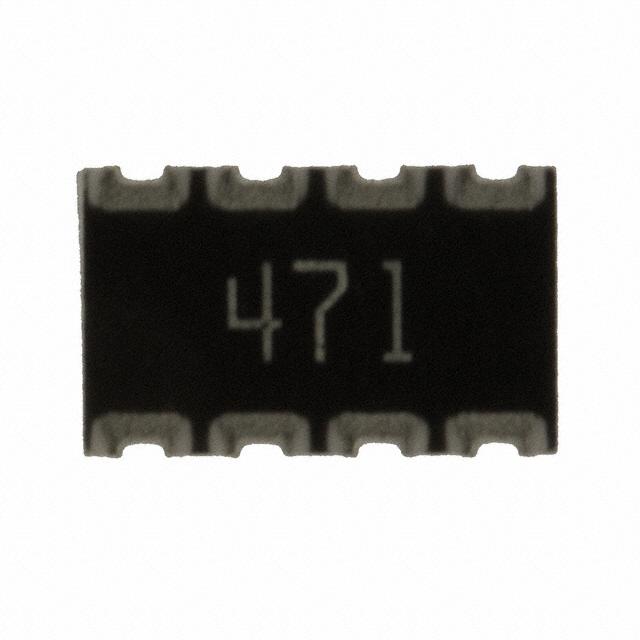

CTS Resistor Products 744C083471JP

744C083471JP CTS Resistor Products
CTS Resistor Products

Product Information

HTSUS:
8533.21.0020
RoHS Status:
ROHS3 Compliant
Temperature Coefficient:
±200ppm/°C
Resistor-Ratio-Drift:
-
Operating Temperature:
-55°C ~ 125°C
Package / Case:
2012, Concave, Long Side Terminals
Tolerance:
±5%
Resistance (Ohms):
470
Height - Seated (Max):
0.028" (0.70mm)
Resistor Matching Ratio:
-
REACH Status:
REACH Unaffected
edacadModel:
744C083471JP Models
Applications:
-
Number of Pins:
8
Circuit Type:
Isolated
edacadModelUrl:
/en/models/1125084
Package:
Tape & Reel (TR)
Size / Dimension:
0.200" L x 0.126" W (5.08mm x 3.20mm)
Power Per Element:
125mW
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
744
Supplier Device Package:
-
Number of Resistors:
4
Base Product Number:
744C083
ECCN:
EAR99
Checking for live stock

This is manufactured by CTS Resistor Products. The manufacturer part number is 744C083471JP. It is assigned with possible HTSUS value of 8533.21.0020. The product is rohs3 compliant. It exhibits an excellent temperature coefficient of ±200ppm/°c. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in 2012, concave, long side terminals. It features ±5% of tolerance value. Moreover, the given resistance of the product is 470. It has the maximum seated height of 0.028" (0.70mm). In addition, it is reach unaffected. It is comprised of 8 pins. It is a type of isolated circuit. It is shipped in tape & reel (tr) package . The product's diameters include 0.200" l x 0.126" w (5.08mm x 3.20mm). The product features a 125mw of power per element. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product 744, is a highly preferred choice for users. It comprises 4 resistors. Moreover, it corresponds to 744c083, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Resistor RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Dev EOL 26/Aug/2019(PCN Obsolescence/ EOL)
pdf icon
Chip Resistor Arrays 74x Series(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 744C083471JP on website for other similar products.
We accept all major payment methods for all products including ET11877380. Please check your shopping cart at the time of order.
You can order CTS Resistor Products brand products with 744C083471JP directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Resistor Networks, Arrays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CTS Resistor Products 744C083471JP. You can also check on our website or by contacting our customer support team for further order details on CTS Resistor Products 744C083471JP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11877380 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CTS Resistor Products" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11877380.
Yes. We ship 744C083471JP Internationally to many countries around the world.
