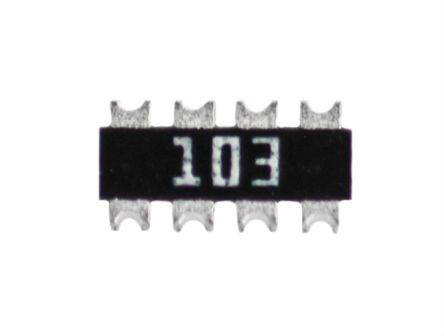

KOA CN Series 10kΩ ±5% Isolated Array Resistor, 4 Resistors 0603 package Concave SMT

CN1J4TTD103J KOA CN Series 10kΩ ±5% Isolated Array Resistor, 4 Resistors 0603 package Concave SMT
KOA

Product Information

Maximum Operating Temperature:
+155°C
Power Rating per Resistor:
0.063W
Circuit Designator:
ISOL
Number of Terminals:
8
Dimensions:
3.2 x 1.6 x 0.6mm
Series:
CN
Resistor Type:
Array
Termination Style:
Concave
Length:
3.2mm
Temperature Coefficient:
±200ppm/°C
Height:
0.6mm
Depth:
1.6mm
Number of Resistors:
4
Minimum Operating Temperature:
-55°C
Case Style:
Moulded
Package/Case:
0603 (1608M)
Tolerance:
±5%
Automotive Standard:
AEC-Q200
Resistance:
10kΩ
RoHs Compliant
Checking for live stock

This is CN Series 10kΩ ±5% Isolated Array Resistor 4 Resistors 0603 package Concave SMT manufactured by KOA. The manufacturer part number is CN1J4TTD103J. It has a maximum operating temperature of +155°c. It has a power rating of 0.063w per resistor . It has a/an isol designator circuit . It includes 8 dedicated terminals . The given dimensions of the product include 3.2 x 1.6 x 0.6mm. The product cn, is a highly preferred choice for users. The product is designed with a/an array type resistor . Moreover, it has concave terminal style. Its accurate length is 3.2mm. It exhibits an excellent temperature coefficient of ±200ppm/°c. In addition, the height is 0.6mm. The product comes in 1.6mm depth. It comprises 4 resistors. Whereas, the minimum operating temperature of the product is -55°c. Moreover, the casing is designed in moulded format and style. Concerning its package and casing, it is 0603 (1608m). It features ±5% of tolerance value. The product complies with automotive standard - aec-q200. It carries 10kω resistance.
