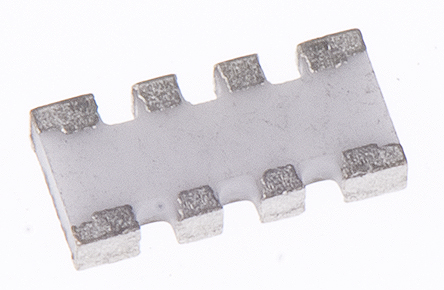

Bourns CAY16 Series 22Ω ±5% Isolated SMT Resistor Array, 4 Resistors, 0.25W total 1206 (3216M) package Convex

CAY16-220J4LF Bourns CAY16 Series 22Ω ±5% Isolated SMT Resistor Array, 4 Resistors, 0.25W total 1206 (3216M) package Convex
CAY16-220J4LF
Bourns

Product Information

Power Rating per Resistor:
0.062W
Circuit Designator:
ISOL
Maximum Operating Temperature:
+125°C
Dimensions:
3.2 x 1.6 x 0.5mm
Series:
CAY16
Resistor Type:
Array
Termination Style:
Convex
Length:
3.2mm
Temperature Coefficient:
±200ppm/°C
Height:
0.5mm
Depth:
1.6mm
Number of Resistors:
4
Minimum Operating Temperature:
-55°C
Case Style:
Moulded
Power Rating:
0.25W
Package/Case:
1206 (3216M)
Tolerance:
±5%
Number of Terminals:
8
Resistance:
22Ω
RoHs Compliant
Checking for live stock

This is CAY16 Series 22Ω ±5% Isolated SMT Resistor Array 4 Resistors 0.25W total 1206 (3216M) package Convex manufactured by Bourns. The manufacturer part number is CAY16-220J4LF. It has a power rating of 0.062w per resistor . It has a/an isol designator circuit . It has a maximum operating temperature of +125°c. The given dimensions of the product include 3.2 x 1.6 x 0.5mm. The product cay16, is a highly preferred choice for users. The product is designed with a/an array type resistor . Moreover, it has convex terminal style. Its accurate length is 3.2mm. It exhibits an excellent temperature coefficient of ±200ppm/°c. In addition, the height is 0.5mm. The product comes in 1.6mm depth. It comprises 4 resistors. Whereas, the minimum operating temperature of the product is -55°c. Moreover, the casing is designed in moulded format and style. Feature 0.25w of power rating. Concerning its package and casing, it is 1206 (3216m). It features ±5% of tolerance value. It includes 8 dedicated terminals . It carries 22ω resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
CAT/CAY 16 Series - Chip Resistor Arrays Data Sheet(Technical Reference)
