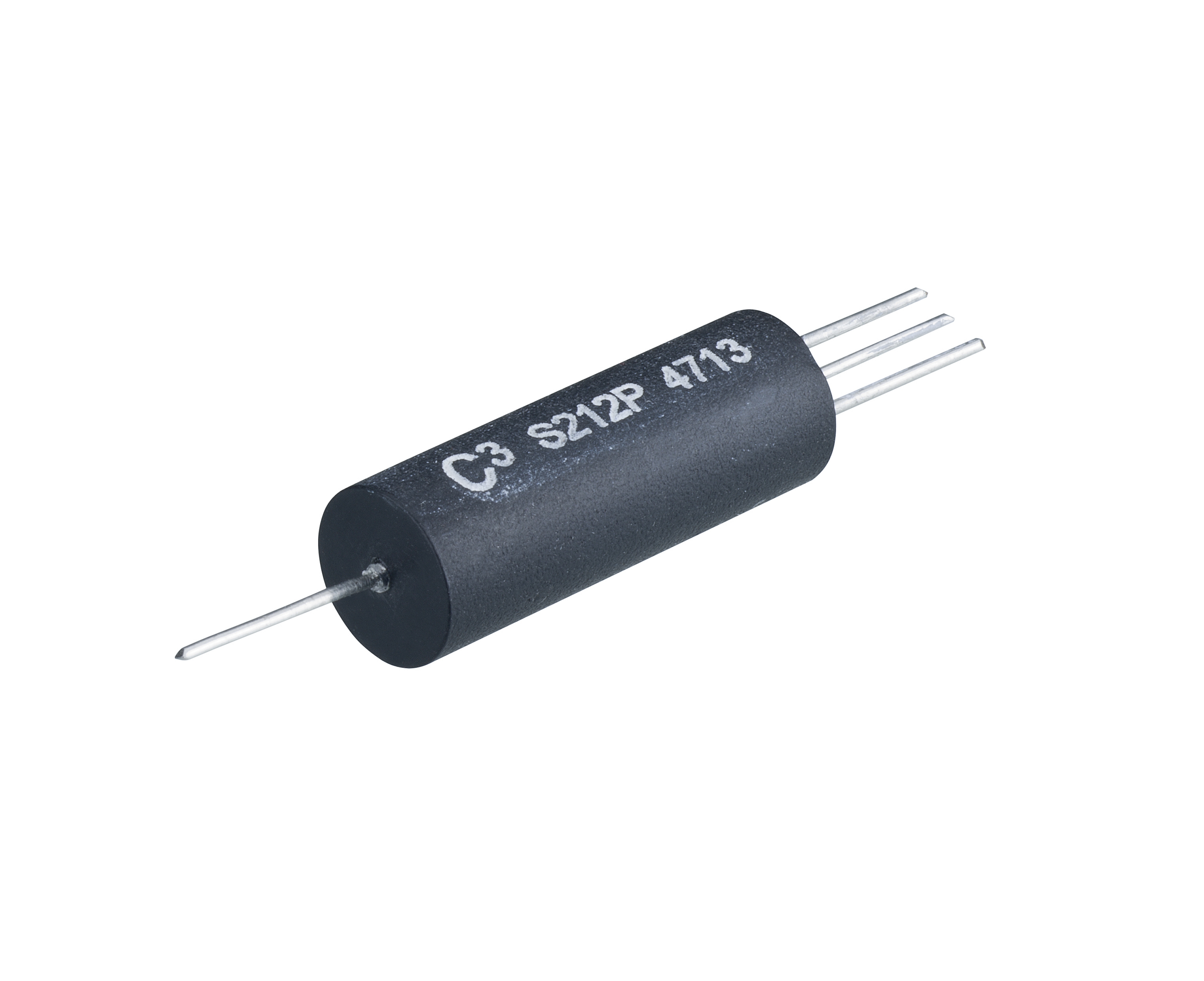

This is Cynergy3 PCB Mount Reed Relay 5V dc Coil SPST 350V dc Max 0.7 A Max 160Ω manufactured by Sensata/Cynergy 3. The manufacturer part number is S2-05P. It features a 80 mω contact resistance. The given dimensions of the product include 7.62 (dia.) x 22.86mm. The coil voltage of the product is 5v dc. It holds up to 160ω coil resistance. It is capable of doing 10000000 (50 w) operations, 1000000000 (dry) operations in a lifetime . While it carries 350v dc of maximum DC switching voltage. It bears a maximum 50 w of DC switching power. The product has 1kv isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. It has a maximum 0.5 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 7.62 (dia.)mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 1ms operating time including bounce . Its accurate length is 22.86mm. It has a minimum 0.7 a DC switching current . It has a maximum AC switching voltage of 300v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 70va. The product is made from sturdy rhodium materials.
For more information please check the datasheets.
