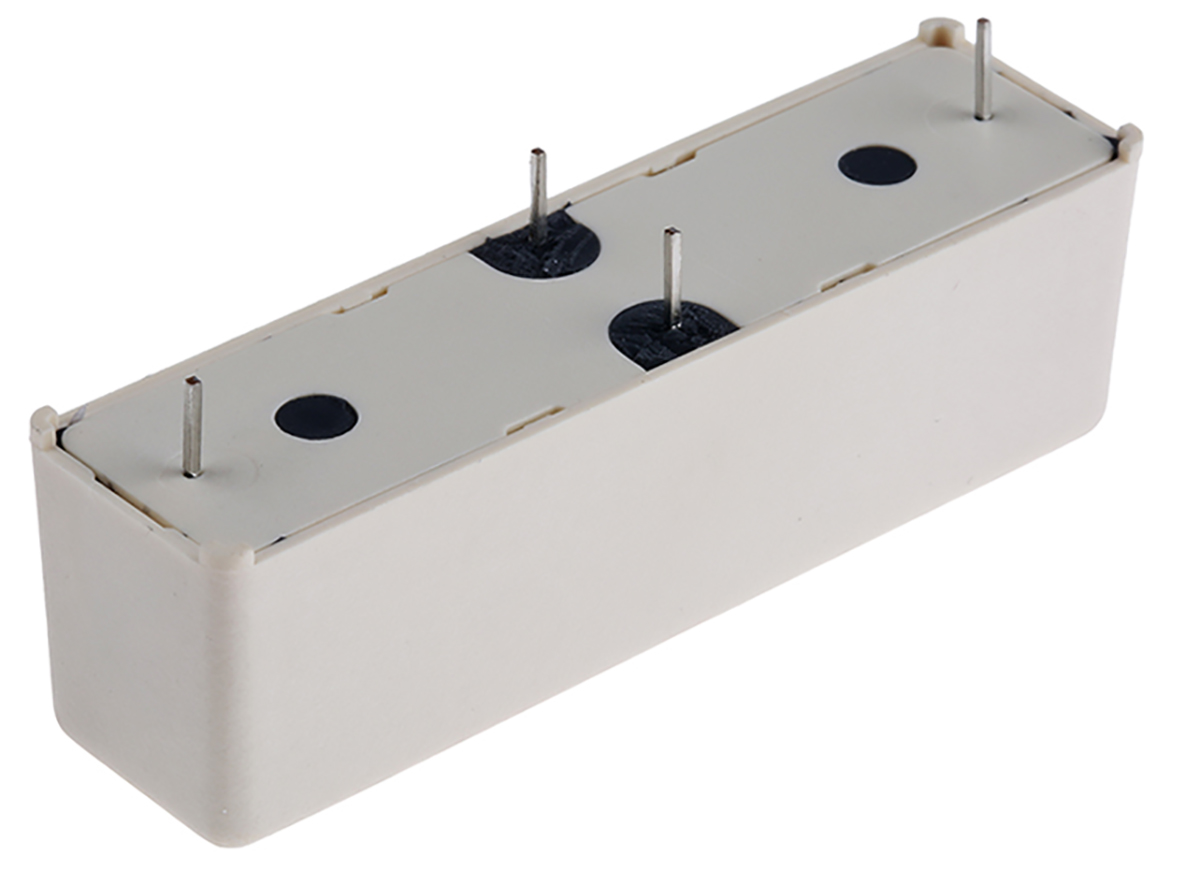

Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SP-NC, 7000V dc Max, 2 A Max, 240Ω

DBT71210 Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SP-NC, 7000V dc Max, 2 A Max, 240Ω
DBT71210
Sensata/Cynergy 3

Product Information

Contact Resistance:
250 mΩ
Dimensions:
60 x 15.8 x 18.5mm
Coil Voltage:
12V dc
Coil Resistance:
240Ω
Life:
1000000 (Electrical) Cycles
Maximum Switching Voltage DC:
7000V dc
Maximum Switching Power DC:
50 W
Isolation Coil To Contact:
10kV ac/dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Maximum Switching Current AC:
2 A
Operating Temperature Range:
-20 → +70°C
Contact Configuration:
SP-NC
Depth:
15.8mm
Mounting Type:
PCB Mount
Operating Time Including Bounce:
2ms
Length:
60mm
Height:
18.5mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
7000V
Minimum Operating Temperature:
-20°C
Contact Material:
Tungsten
RoHs Compliant
Checking for live stock

This is Cynergy3 PCB Mount Reed Relay 12V dc Coil SP-NC 7000V dc Max 2 A Max 240Ω manufactured by Sensata/Cynergy 3. The manufacturer part number is DBT71210. It features a 250 mω contact resistance. The given dimensions of the product include 60 x 15.8 x 18.5mm. The coil voltage of the product is 12v dc. It holds up to 240ω coil resistance. It is capable of doing 1000000 (electrical) cycles in a lifetime . While it carries 7000v dc of maximum DC switching voltage. It bears a maximum 50 w of DC switching power. The product has 10kv ac/dc isolation coil to contact. It has a maximum operating temperature of +70°c. The terminal is a through hole type. It has a maximum 2 a switching current AC . The product has -20 → +70°c of operating temperature range. The contact is equipped with sp-nc configuration. The product comes in 15.8mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 2ms operating time including bounce . Its accurate length is 60mm. In addition, the height is 18.5mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 7000v. Whereas, the minimum operating temperature of the product is -20°c. The product is made from sturdy tungsten materials.

pdf icon
D Series HIGH VOLTAGE RELAYS 10KV & 15KV Datasheet(Technical Reference)
pdf icon
Information Sheet - Reed Relays(Technical Reference)
pdf icon
Application Note - Reed Relays(Technical Reference)
