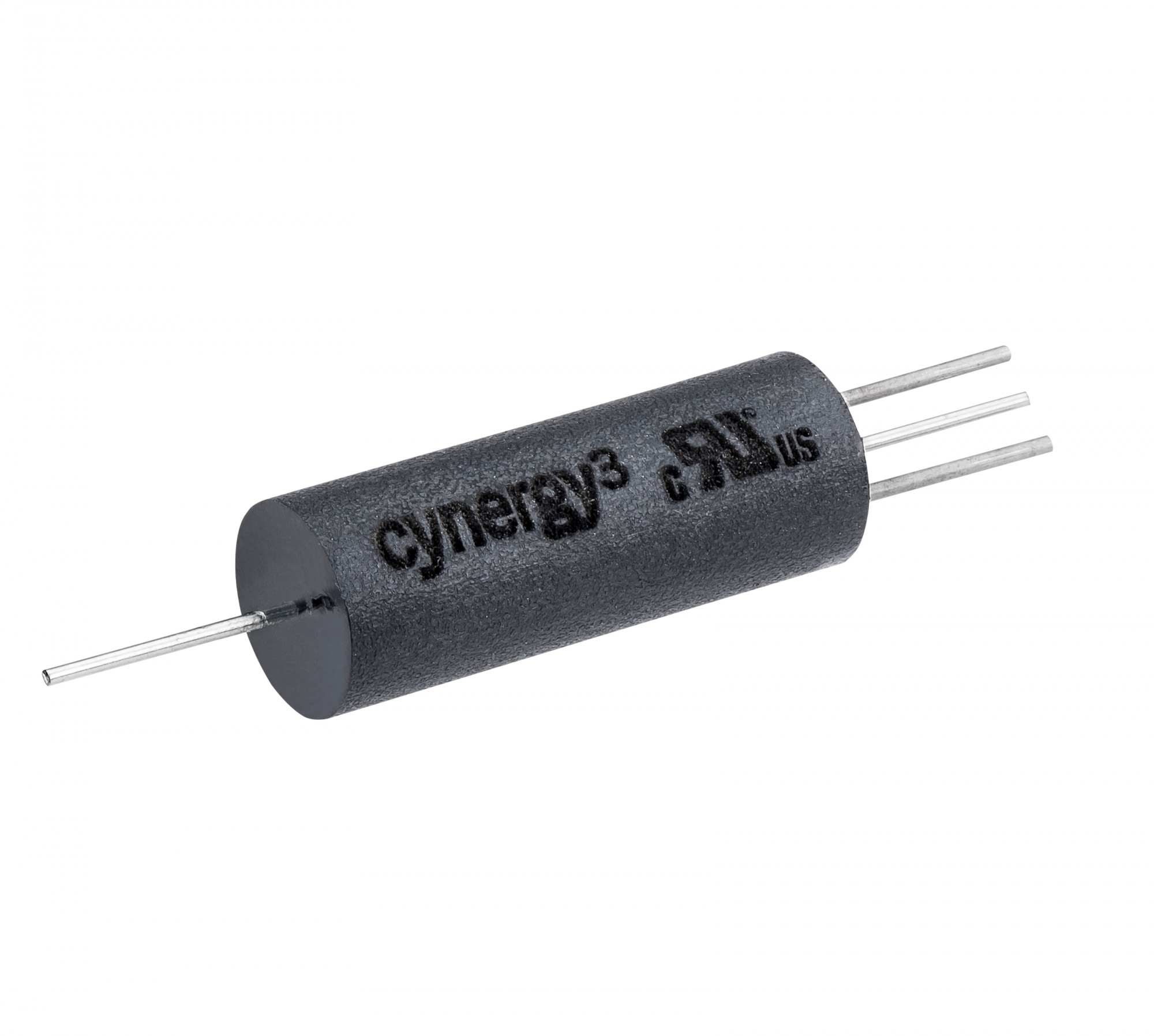

Sensata/Cynergy 3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V Max, 1 A Max, 1000Ω

S2-12EU-RS Sensata/Cynergy 3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V Max, 1 A Max, 1000Ω
Sensata/Cynergy 3

Product Information

Contact Resistance:
100 mΩ
Dimensions:
7.62 (Dia.) x 22.86mm
Coil Voltage:
12V dc
Coil Resistance:
1000Ω
Life:
10000000 (Resistive Load) operations, 1000000000 (Dry) operations
Standards Met:
cULus Recognised, UL Approved
Maximum Switching Voltage DC:
350V
Isolation Coil To Contact:
1kV dc
Maximum Operating Temperature:
+85°C
Terminal Type:
Axial
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPST
Depth:
7.62 (Dia.)mm
Relay Switching Classification:
General Purpose Relay
Special Features:
Variable mΩunting Options
Mounting Type:
PCB Mount
Operating Time Including Bounce:
1ms
Length:
22.86mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
300V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
100VA
Number of Poles:
1
Contact Material:
Rhodium
RoHs Compliant
Checking for live stock

This is PCB Mount Reed Relay 12V dc Coil SPST 350V Max 1 A Max 1000Ω manufactured by Sensata/Cynergy 3. The manufacturer part number is S2-12EU/RS. It features a 100 mω contact resistance. The given dimensions of the product include 7.62 (dia.) x 22.86mm. The coil voltage of the product is 12v dc. It holds up to 1000ω coil resistance. It is capable of doing 10000000 (resistive load) operations, 1000000000 (dry) operations in a lifetime . The product complies with all safety standards, such as culus recognised, ul approved. While it carries 350v of maximum DC switching voltage. The product has 1kv dc isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a axial type. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 7.62 (dia.)mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as variable mωunting options. The product is available in pcb mount configuration. Moreover, the product offers a 1ms operating time including bounce . Its accurate length is 22.86mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 300v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 100va. It has equipped with 1 poles. The product is made from sturdy rhodium materials.

pdf icon
S2 (UL) Series Axial Reed Relay Datasheet(Technical Reference)
