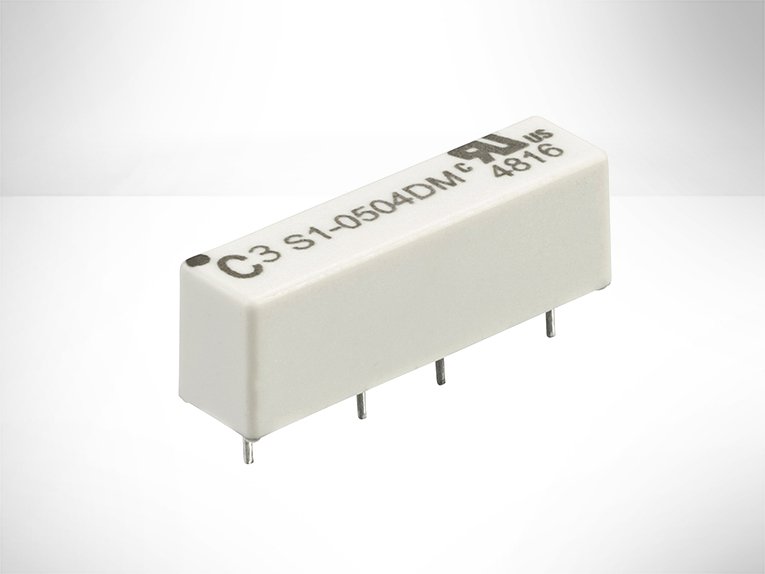

This is PCB Mount Reed Relay 5V dc Coil SPST 350V Max 1 A Max 180Ω manufactured by Sensata/Cynergy 3. The manufacturer part number is S1-0504/RS. It features a 100 mω contact resistance. The given dimensions of the product include 24.1 x 6.2 x 8.1mm. The coil voltage of the product is 5v dc. It holds up to 180ω coil resistance. It is capable of doing 1000000000 (dry) operations in a lifetime . While it carries 350v of maximum DC switching voltage. The product has 5kv dc isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 6.2mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as space saving. The product is available in pcb mount configuration. Moreover, the product offers a 1ms operating time including bounce . Its accurate length is 24.1mm. In addition, the height is 8.1mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 300v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 100va. It has equipped with 1 poles. The product is made from sturdy rhodium materials.
For more information please check the datasheets.
