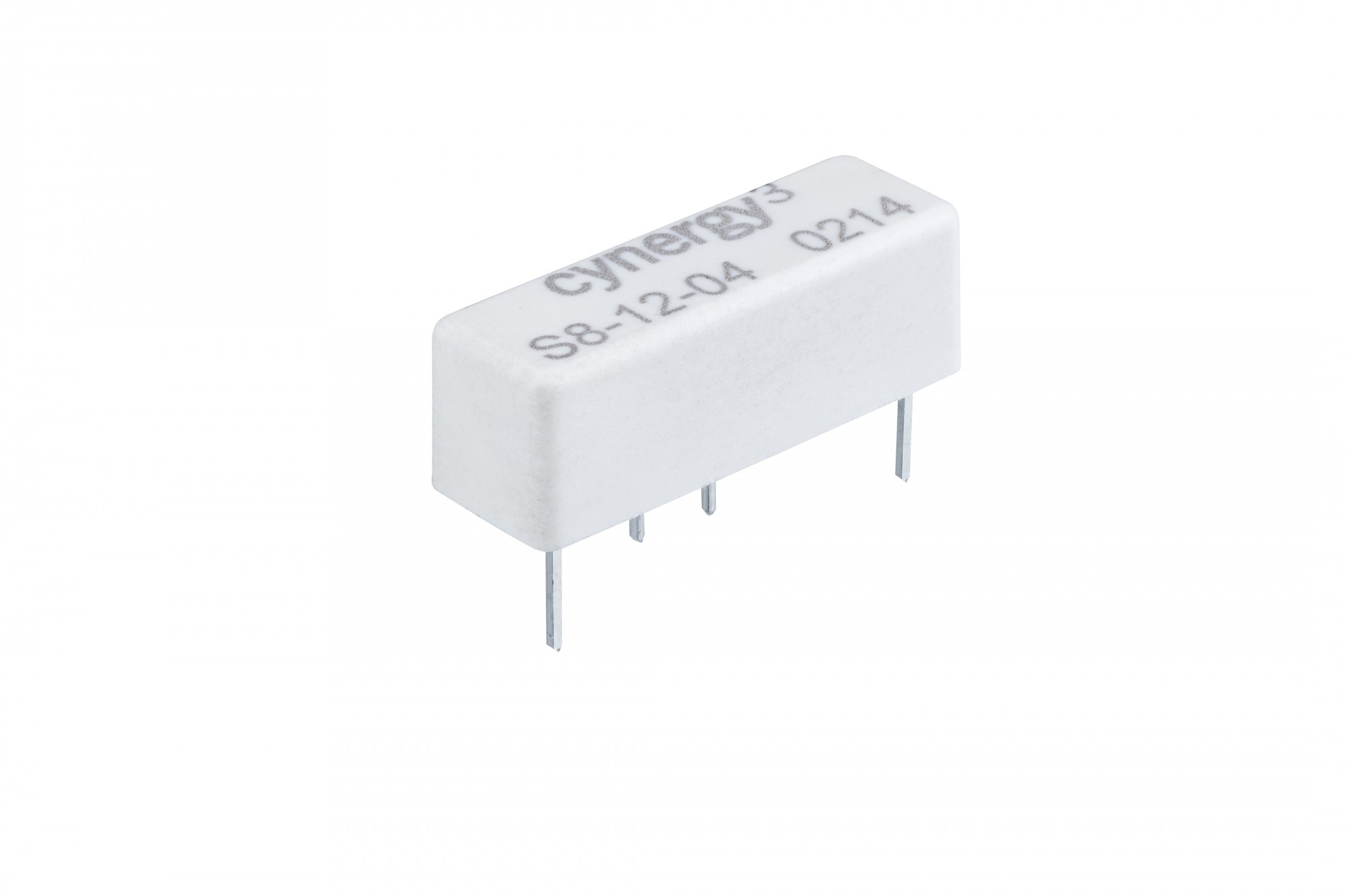

This is PCB Mount Reed Relay 12V dc Coil SPST 1000V Max 1 A Max 750Ω manufactured by Sensata/Cynergy 3. The manufacturer part number is S8-1204V/RS. It features a 150 mω contact resistance. The given dimensions of the product include 30 x 10 x 12mm. The coil voltage of the product is 12v dc. It holds up to 750ω coil resistance. It is capable of doing 10000000 (100 w) cycles, 1000000000 (dry) cycles in a lifetime . While it carries 1000v of maximum DC switching voltage. It bears a maximum 100 w of DC switching power. The product has 7kv isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 10mm depth. It has a general purpose relay switching relay configuration . The product also provides special features, such as space saving. The product is available in pcb mount configuration. Moreover, the product offers a 1ms operating time including bounce . Its accurate length is 30mm. In addition, the height is 12mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 1000v. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. The product is made from sturdy rhodium materials.
For more information please check the datasheets.
