Contact Resistance:
250 mΩ
Dimensions:
60 x 15.8 x 18.5mm
Electrical Life:
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Coil Resistance:
28Ω
Life:
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Maximum Switching Voltage DC:
7000V
Maximum Switching Power DC:
50 W
Isolation Coil To Contact:
17kV
Maximum Operating Temperature:
+70°C
Terminal Type:
Wire Wrap
Maximum Switching Current AC:
2 A
Coil Voltage:
5V dc
Operating Temperature Range:
-20 → +70°C
Contact Configuration:
SPST
Depth:
15.8mm
Relay Switching Classification:
General Purpose Relay
Special Features:
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
Mounting Type:
Panel Mount
Operating Time Including Bounce:
3ms
Length:
60mm
Height:
18.5mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
7000V
Minimum Operating Temperature:
-20°C
Number of Poles:
1
Contact Material:
Tungsten
HTSUS:
8536.41.0030
RoHS Status:
ROHS3 Compliant
Coil Voltage:
5VDC
Termination Style:
Solder Turret
REACH Status:
REACH Unaffected
Operating Temperature:
-20°C ~ 70°C
Coil Resistance:
28 Ohms
Coil Current:
179 mA
Coil Type:
Non Latching
Switching Voltage:
3500VAC, 3500VDC - Max
Seal Rating:
-
Must Operate Voltage:
3.7 VDC
Manufacturer:
Sensata-Cynergy3
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
3 ms
Must Release Voltage:
0.5 VDC
standardLeadTime:
16 Weeks
Contact Rating (Current):
2 A
Features:
-
Mounting Type:
Chassis Mount
Series:
DA
Release Time:
2 ms
Packaging:
Bulk
ECCN:
EAR99

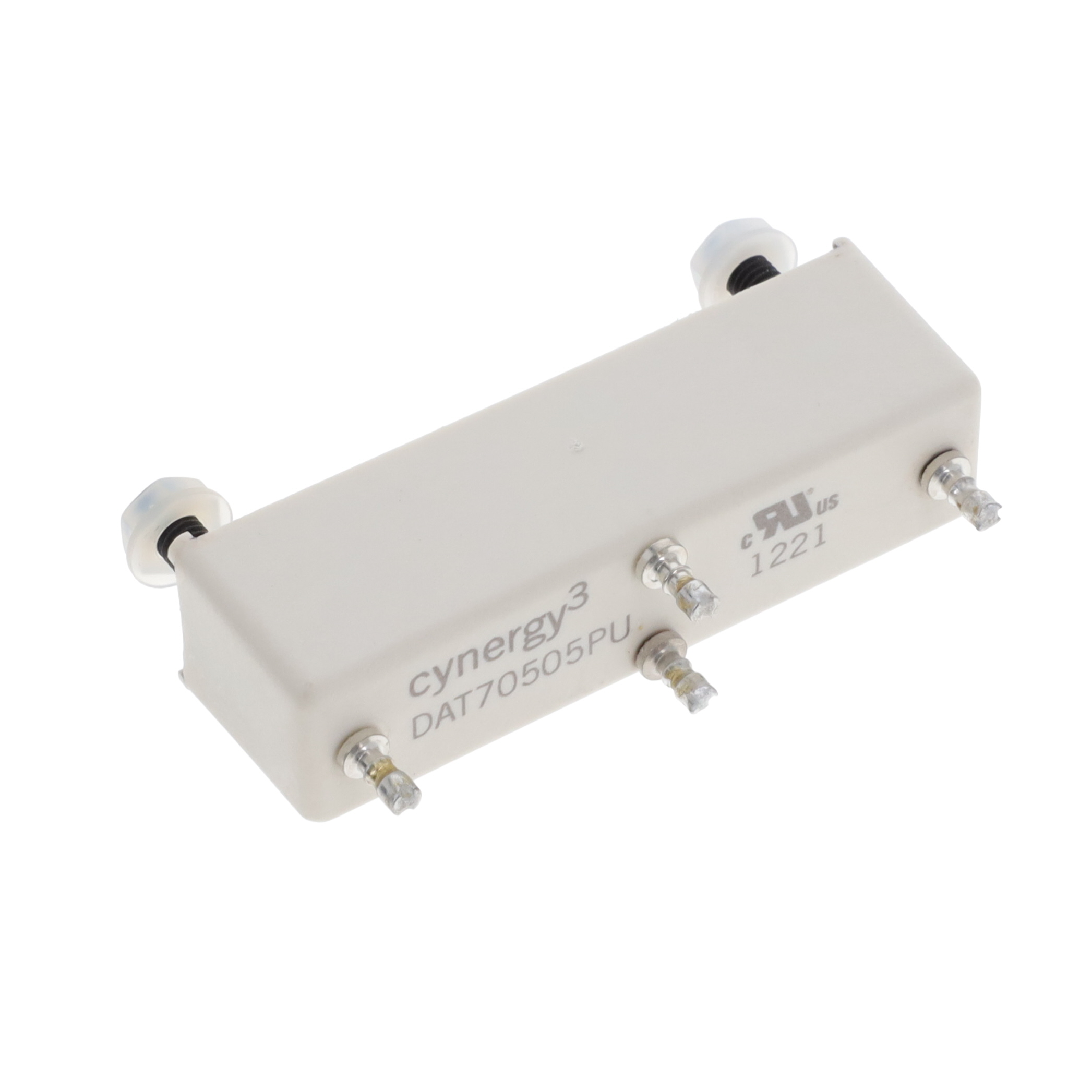

Base Product Number:
DAT70505
Contact Material:
Tungsten (W)
