Name: DR-SDS-5, Panasonic
Brand: Panasonic
SKU: ET16750373
Availability: PreOrder

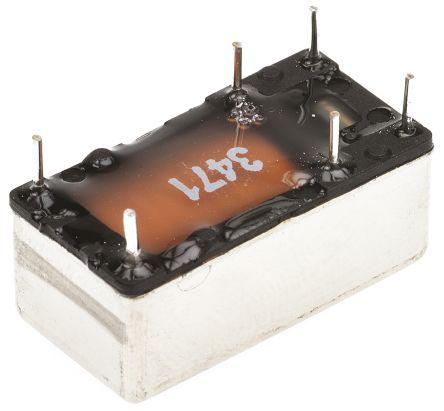

DR-SDS-5 SPDT Reed Relay, 0.3 A @ V ac, 1 A @ V dc, 5V dc

(0)

Product Information

Dimensions:

20 x 10 x 8.5mm

Coil Voltage:

5V dc

Coil Resistance:

320 Ω

Maximum Switching Voltage DC:

30V dc

Maximum Switching Power DC:

20 W

Maximum Operating Temperature:

+85°C

Terminal Type:

PCB Pin

Maximum Switching Current AC:

0.3 A

Operating Temperature Range:

-50 → +85°C

Contact Configuration:

SPDT

Length:

20mm

Mounting Type:

PCB Mount

Checking for live stock

This is SPDT Reed Relay 0.3 A @ V ac 1 A @ V dc 5V dc manufactured by Panasonic. The manufacturer part number is DR-SDS-5. The given dimensions of the product include 20 x 10 x 8.5mm. The coil voltage of the product is 5v dc. It holds up to 320 ω coil resistance. While it carries 30v dc of maximum DC switching voltage. It bears a maximum 20 w of DC switching power. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. It has a maximum 0.3 a switching current AC . The product has -50 → +85°c of operating temperature range. The contact is equipped with spdt configuration. Its accurate length is 20mm. The product is available in pcb mount configuration. The product comes in 10mm depth. In addition, the height is 8.5mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 110v ac. Whereas, the minimum operating temperature of the product is -50°c. It also features an AC switching power of 33 va. It has equipped with 5 poles. The product is made from sturdy gold plated materials.

DR-Series Highly Reliable Miniature DIP-Relays(Technical Reference)
